Item NO.:
OBD-35Order(MOQ):
1Payment:
T/T, L/C, Western Union,Money GrainProduct Origin:
ChinaShipping Port:
XiamenLead Time：
30 daysWeight：
300Product Detail

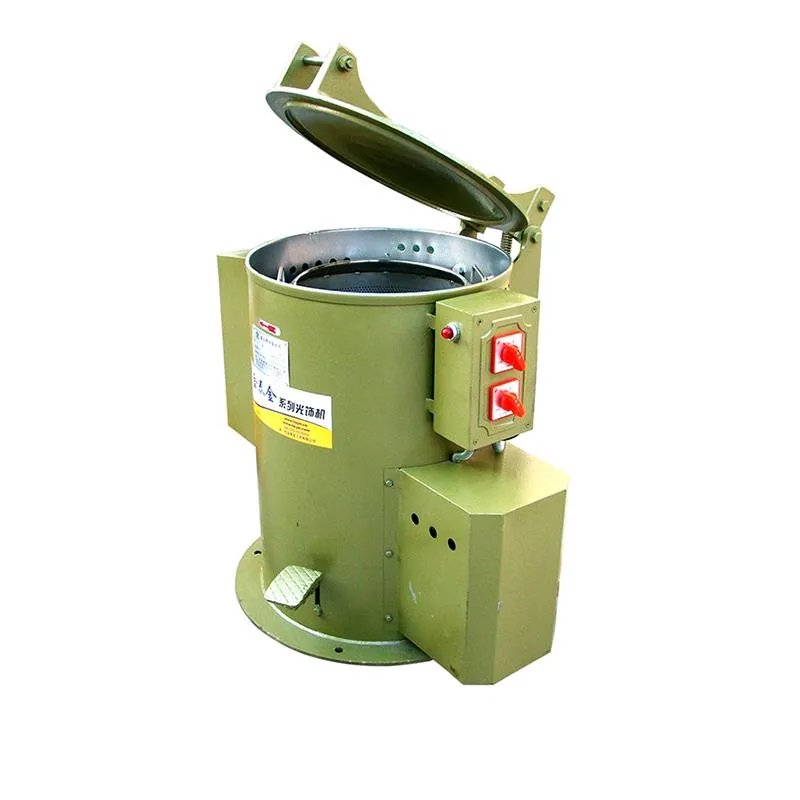

Centrifugal spin dryers, also referred to as hot air centrifugal dryers or industrial spin drying systems, are engineered to efficiently remove moisture, residual water, and processing fluids from a wide range of manufactured components following wet finishing operations. These systems operate by combining controlled thermal energy with high-speed centrifugal force to spin workpieces at elevated rotational speeds, allowing moisture to be rapidly extracted from component surfaces and collected in a separate drainage compartment.
Our comprehensive product range includes two distinct configuration types -- Economy Type and Heavy-Duty Type -- each available in two capacity sizes: 35 kg and 70 kg. These versatile drying systems function effectively as independent standalone units or integrate seamlessly with existing vibratory finishing machines, centrifugal disc finishers, and tumbling equipment to establish a complete automated mass finishing production line.
Professional Equipment Selection Assistance
Uncertain about selecting the optimal centrifugal spin dryer and compatible drying media for your post-finishing application? Our technical specialists provide comprehensive consultation and complimentary application review services tailored to your specific drying requirements.
Available in both economy-grade and heavy-duty industrial-grade configurations, each engineered to address specific production requirements. The economy models deliver reliable performance for standard applications, while heavy-duty variants are designed for continuous high-volume industrial drying operations with enhanced durability and extended service life
Highly efficient thermal drying technology combined with centrifugal moisture extraction minimizes energy consumption while maximizing throughput. The integrated deoiling capability simultaneously removes residual processing oils, compounds, and fluids, eliminating the need for separate oil removal equipment
Precision-engineered mechanical brake system enables rapid deceleration and controlled basket stopping. The foot-operated brake pedal mechanism provides immediate response for enhanced operator safety and efficient loading/unloading cycles during high-speed drying operations
Built-in electric heating elements (1.8-3.0 kW) generate controlled hot air circulation within the drying chamber. Adjustable temperature management ensures optimal moisture evaporation rates while preventing thermal damage to heat-sensitive components and surface finishes
Designed for flexible deployment as a standalone drying unit or as an integrated component within automated mass finishing production lines. Compatible with vibratory bowls, centrifugal disc finishers, barrel tumblers, and media separation systems for seamless workflow continuity
Rotational speeds up to 655 RPM generate powerful centrifugal forces that rapidly extract moisture from component surfaces, internal cavities, and complex geometries. Effective removal of water, polishing compounds, cleaning solutions, and residual processing fluids
Industrial centrifugal dryers serve as essential post-processing equipment across numerous manufacturing sectors where rapid, efficient moisture removal and component drying are critical for maintaining production quality and throughput.
Rapid drying of components following wet vibratory finishing, tumbling operations, and mass polishing processes. Removes residual water, compounds, and processing solutions to prepare parts for subsequent operations
Efficient drying after parts washing, ultrasonic cleaning, aqueous degreasing, and rinsing operations. Prevents water spotting, staining, and corrosion formation on freshly cleaned surfaces
Critical pre-coating drying ensuring complete moisture removal before electroplating, anodizing, powder coating, and painting operations. Prevents adhesion failures and coating defects caused by residual moisture
Effective removal of machining oils, cutting fluids, coolants, and lubricant residues from machined components. Combined centrifugal and thermal action strips contaminants from complex part geometries
Precision drying of automotive fasteners, engine components, aerospace hardware, and structural parts requiring contamination-free surfaces for assembly or subsequent processing stages
Controlled-temperature drying for medical components, electronic hardware, precision instruments, and sensitive assemblies requiring gentle moisture removal without thermal damage
| Specification |
Model 35 (Heavy-Duty) |
Model 35A (Economy) |
Model 70A (Economy) |
Model 70 (Heavy-Duty) |
|---|---|---|---|---|
| Carrying Capacity |
30 kg 66.1 lbs |
35 kg 77.2 lbs |
60 kg 132.3 lbs |
50 kg 110.2 lbs |
|
Machine Dimensions (L x W x H mm) |
650 x 800 x 800 25.6" x 31.5" x 31.5" |
750 x 700 x 710 29.5" x 27.6" x 28.0" |
900 x 580 x 730 35.4" x 22.8" x 28.7" |
800 x 1000 x 850 31.5" x 39.4" x 33.5" |
|
Basket Dimensions (Dia. x Height mm) |
400 x 300 15.7" x 11.8" |
400 x 285 15.7" x 11.2" |
480 x 290 18.9" x 11.4" |
500 x 400 19.7" x 15.7" |
| Motor Power |
0.75 kW 1.0 HP |
0.75 kW 1.0 HP |
1.1 kW 1.5 HP |
1.1 kW 1.5 HP |
| Heater Power | 3.0 kW | 1.8 kW | 3.0 kW | 3.0 kW |
| Standard Voltage | 380V | 380V | 380V | 380V |
| Net Weight |
80 kg 176.4 lbs |
150 kg 330.7 lbs |
170 kg 374.8 lbs |
100 kg 220.5 lbs |
| Spin Speed | 655 RPM | 551 RPM | 551 RPM | 551 RPM |
Configuration Note: Standard voltage 380V for all models. Custom voltage configurations available for international markets. Specifications represent standard production configurations. Custom centrifugal drying systems with modified basket sizes, heating capacities, and control systems available upon request.
Programmable digital control panel with integrated timer enables automated cycle management, preset drying programs, and consistent process repeatability for production environments
Advanced variable frequency drive provides precise spin speed control, soft start/stop functionality, and energy-efficient operation. Enables optimization of drying parameters for different component types
Automated pneumatic lid operation system enables hands-free opening and closing of the dryer cover, improving ergonomics, reducing operator fatigue, and enhancing production cycle efficiency
Application-specific custom-fabricated drying baskets designed for unique component geometries, specialized part configurations, and optimized loading arrangements for maximum drying efficiency
Capacity: 30 kg | Speed: 655 RPM
Heater: 3.0 kW | Enhanced construction
Best for: Continuous production, heavy parts
Capacity: 35 kg | Speed: 551 RPM
Heater: 1.8 kW | Cost-effective design
Best for: Standard applications, budget-conscious
Capacity: 50 kg | Speed: 551 RPM
Heater: 3.0 kW | Larger basket: 500 x 400 mm
Best for: Large parts, high-volume production
Capacity: 60 kg | Speed: 551 RPM
Heater: 3.0 kW | Compact footprint
Best for: High-capacity economical drying
Combined centrifugal and thermal action achieves complete moisture removal in minutes, dramatically reducing production cycle times
Simultaneous moisture removal and deoiling capability eliminates the need for separate processing stages
Low motor power consumption combined with efficient heater design minimizes energy costs per drying cycle
Rapid moisture elimination prevents flash rust, water spotting, and corrosion formation on freshly finished components
Four model options from 30-60 kg capacity address diverse production volumes and throughput requirements
Robust design with minimal moving parts reduces maintenance requirements and maximizes equipment uptime
Centrifugal spin dryer | Hot air centrifugal dryer | Industrial spin drying system | Post-finishing dryer | Mass finishing dryer | Parts drying equipment | Centrifugal moisture extractor | Hot air drying machine | Vibratory finishing dryer | Component drying system | Industrial dewatering equipment | Spin dry machine | Centrifugal deoiling system | Post-washing dryer | Metal parts dryer | Fastener drying equipment | Automotive parts dryer | Medical device drying | Electronics component dryer | Pre-plating dryer | Pre-coating drying system | Flash rust prevention | Corrosion prevention dryer | Production line dryer | Finishing line integration | Economy centrifugal dryer | Heavy-duty spin dryer | Variable speed dryer | Timer controlled dryer | Pneumatic cover dryer | Custom basket dryer | Energy efficient drying | Rapid drying equipment | Batch drying system | Industrial degreasing dryer
Related Tags :
Email : info@surface-polish.com
Values as printed in the Jintaijin catalogue. Capacity figures are the catalogue's carrying capacity, not basket volume.
| Model | Carrying capacity (KG) | Specification L×W×H (mm) | Barrel size (φ×H, mm) | Motor (kW) | Heater (kW) | Voltage (V) | Net weight (KG) | Speed |
|---|---|---|---|---|---|---|---|---|
| 35 | 30 | 650×800×800 | 400×300 | 0.75 | 3 | 380 | 80 | 655 |
| 35A | 35 | 750×700×710 | 400×285 | 0.75 | 1.8 | 380 | 150 | 551 |
| 70 | 50 | 800×1000×850 | 500×400 | 1.1 | 3 | 380 | 100 | 551 |
| 70A | 60 | 900×580×730 | 480×290 | 1.1 | 3 | 380 | 170 | 551 |
Source: official Jintaijin catalogue, catalogue page. The catalogue prints the weight column as “Met weight”; it is shown here as net weight. Model 35A lists a 1.8 kW heater against 3 kW for the other three.
