Item NO.:
OBD-35AOrder(MOQ):
1Payment:
T/T, L/C, Western Union,Money GrainProduct Origin:
ChinaShipping Port:
XiamenLead Time：
30 daysWeight：
300Product Detail

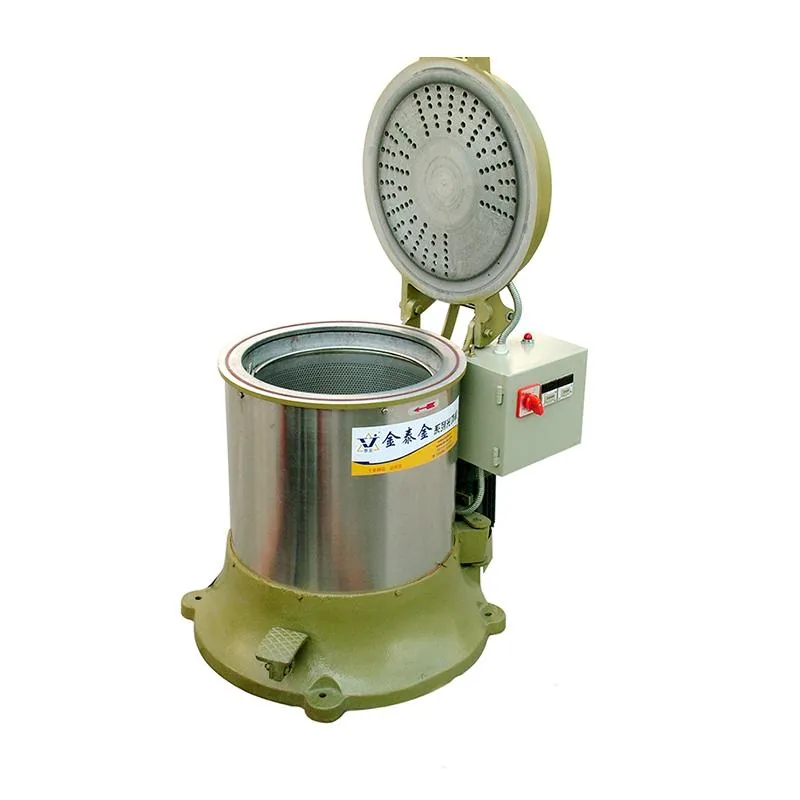

Industrial centrifugal spin dryers, also known as hot air centrifugal dewatering machines or industrial spin drying systems, are purpose-built to rapidly eliminate surface moisture, residual water, and industrial processing fluids from a wide range of manufactured parts following wet mass finishing operations. These systems operate by combining regulated thermal energy with high-velocity centrifugal force to rotate workpieces at high speeds, allowing moisture to be quickly expelled from part surfaces and channeled into a dedicated drainage chamber.
Our full product lineup features two distinct design configurations -- Economy-Grade and Heavy-Duty Industrial-Grade -- each offered in two load capacities: 35 kg and 70 kg. These multi-purpose industrial drying systems operate efficiently as standalone units or integrate flawlessly with existing vibratory finishing equipment, centrifugal disc finishers, and barrel tumbling machines to create a fully automated mass finishing production line.
Expert Equipment Selection Support
Not sure which centrifugal spin dryer and matching drying accessories are best suited for your post-finishing application? Our technical specialists provide comprehensive consultation and complimentary application review services customized to your unique drying needs.
Available in both budget-friendly economy and rugged heavy-duty industrial configurations, each designed to meet specific production demands. Economy models deliver consistent performance for routine applications, while heavy-duty variants are built for continuous high-throughput industrial drying processes with improved durability and longer operational lifespan
High-performance thermal drying technology combined with centrifugal moisture extraction reduces energy usage while boosting production throughput. The built-in deoiling functionality concurrently removes residual machining oils, finishing compounds, and process fluids, eliminating the requirement for dedicated oil removal systems
Precision-machined mechanical braking system allows for fast deceleration and controlled basket stopping. The foot-activated brake pedal design delivers instant response for improved operator safety and streamlined loading and unloading cycles during high-speed drying operations
Integrated electric heating elements (1.8-3.0 kW) produce regulated hot air flow throughout the drying chamber. Adjustable temperature control maintains ideal moisture evaporation rates while protecting heat-sensitive parts and surface finishes from thermal damage
Engineered for flexible use as a standalone drying unit or as an integrated module within automated mass finishing production lines. Compatible with vibratory bowls, centrifugal disc finishers, barrel tumblers, and media separation equipment for uninterrupted workflow continuity
Rotational speeds of up to 655 RPM create strong centrifugal forces that quickly remove moisture from part surfaces, internal cavities, and intricate geometries. Efficiently removes water, polishing compounds, cleaning agents, and residual process fluids
Industrial centrifugal dryers are critical post-processing equipment across numerous manufacturing sectors where fast, effective moisture removal and part drying are essential for ensuring production quality and maximizing throughput.
Fast drying of parts after wet vibratory finishing, barrel tumbling, and mass polishing operations. Eliminates residual water, finishing compounds, and process solutions to ready parts for downstream processes
Effective drying following parts washing, ultrasonic cleaning, aqueous degreasing, and rinsing processes. Prevents water spots, staining, and corrosion development on newly cleaned surfaces
Essential pre-coating drying that ensures full moisture removal prior to electroplating, anodizing, powder coating, and painting processes. Avoids adhesion issues and coating defects caused by trapped moisture
Efficient removal of machining oils, cutting fluids, coolants, and lubricant residues from machined parts. Combined centrifugal and thermal action removes contaminants from intricate part shapes
Accurate drying of automotive fasteners, engine parts, aerospace hardware, and structural components that require contamination-free surfaces for assembly or further processing
Temperature-controlled drying for medical parts, electronic components, precision instruments, and delicate assemblies that require gentle moisture removal without thermal harm
| Specification |
Model 35 (Heavy-Duty) |
Model 35A (Economy) |
Model 70A (Economy) |
Model 70 (Heavy-Duty) |
|---|---|---|---|---|
| Load Capacity |
30 kg 66.1 lbs |
35 kg 77.2 lbs |
60 kg 132.3 lbs |
50 kg 110.2 lbs |
|
Overall Dimensions (L x W x H mm) |
650 x 800 x 800 25.6" x 31.5" x 31.5" |
750 x 700 x 710 29.5" x 27.6" x 28.0" |
900 x 580 x 730 35.4" x 22.8" x 28.7" |
800 x 1000 x 850 31.5" x 39.4" x 33.5" |
|
Drying Basket Dimensions (Dia. x Height mm) |
400 x 300 15.7" x 11.8" |
400 x 285 15.7" x 11.2" |
480 x 290 18.9" x 11.4" |
500 x 400 19.7" x 15.7" |
| Drive Motor Power |
0.75 kW 1.0 HP |
0.75 kW 1.0 HP |
1.1 kW 1.5 HP |
1.1 kW 1.5 HP |
| Heating Element Power | 3.0 kW | 1.8 kW | 3.0 kW | 3.0 kW |
| Nominal Voltage | 380V | 380V | 380V | 380V |
| Net Machine Weight |
80 kg 176.4 lbs |
150 kg 330.7 lbs |
170 kg 374.8 lbs |
100 kg 220.5 lbs |
| Rotational Speed | 655 RPM | 551 RPM | 551 RPM | 551 RPM |
Configuration Note: All models feature a standard 380V voltage rating. Custom voltage options are available for international markets. Specifications listed are for standard production models. Custom centrifugal drying systems with modified basket dimensions, heating capacities, and control panels are available upon request.
Programmable digital control panel with built-in timer allows for automated cycle control, predefined drying programs, and consistent process reproducibility in production settings
Advanced variable frequency drive delivers accurate rotational speed control, soft start/stop capabilities, and energy-saving operation. Allows for optimization of drying parameters for various part types
Automated pneumatic lid system allows for hands-free opening and closing of the dryer lid, improving ergonomics, reducing operator strain, and boosting production cycle efficiency
Application-specific custom-made drying baskets designed for unique part geometries, specialized part setups, and optimized loading configurations for maximum drying efficiency
Capacity: 30 kg | Speed: 655 RPM
Heater: 3.0 kW | Heavy-duty construction
Ideal for: Continuous production runs, heavyweight components
Capacity: 35 kg | Speed: 551 RPM
Heater: 1.8 kW | Budget-friendly design
Ideal for: Routine applications, budget-focused operations
Capacity: 50 kg | Speed: 551 RPM
Heater: 3.0 kW | Oversized basket: 500 x 400 mm
Ideal for: Large components, high-volume production
Capacity: 60 kg | Speed: 551 RPM
Heater: 3.0 kW | Space-saving footprint
Ideal for: High-capacity cost-effective drying
Combined centrifugal and thermal action delivers full moisture removal in just minutes, significantly shortening production cycle times
Simultaneous moisture removal and deoiling functionality eliminates the need for separate processing steps
Low motor power usage combined with efficient heater design reduces energy costs per drying cycle
Fast moisture removal prevents flash rust, water spots, and corrosion on newly finished parts
Four model options ranging from 30-60 kg capacity meet diverse production volumes and throughput needs
Durable design with few moving parts lowers maintenance needs and maximizes equipment uptime
Centrifugal spin dryer | Hot air centrifugal dryer | Industrial spin drying system | Post-finishing dryer | Mass finishing dryer | Parts drying equipment | Centrifugal moisture extractor | Hot air drying machine | Vibratory finishing dryer | Component drying system | Industrial dewatering equipment | Spin dry machine | Centrifugal deoiling system | Post-washing dryer | Metal parts dryer | Fastener drying equipment | Automotive parts dryer | Medical device drying | Electronics component dryer | Pre-plating dryer | Pre-coating drying system | Flash rust prevention | Corrosion prevention dryer | Production line dryer | Finishing line integration | Economy centrifugal dryer | Heavy-duty spin dryer | Variable speed dryer | Timer controlled dryer | Pneumatic cover dryer | Custom basket dryer | Energy efficient drying | Rapid drying equipment | Batch drying system | Industrial degreasing dryer | Industrial centrifugal dewatering machine | Hot air spin dryer for metal parts | Centrifugal dryer for vibratory finishing | Industrial parts spin dryer | Centrifugal deoiling machine | Post polishing dryer | Metal component drying equipment | High speed centrifugal dryer | Industrial batch dryer | Centrifugal dryer with heater | Automatic spin dryer | Industrial dewatering dryer | Centrifugal dryer for plating line | Hot air centrifugal deoiler | Small industrial spin dryer | Large capacity centrifugal dryer | Heavy duty industrial spin dryer | Centrifugal dryer for automotive parts | Centrifugal dryer for medical devices | Centrifugal dryer for electronics | Vibratory finishing line dryer | Mass finishing drying equipment | Industrial moisture extractor | Centrifugal water extractor | Industrial oil extractor | Centrifugal degreasing dryer | Post washing spin dryer | Pre plating spin dryer | Corrosion prevention dryer | Energy efficient industrial dryer | Rapid drying centrifugal machine | Batch centrifugal dryer | Custom centrifugal drying system | 380V industrial spin dryer | Centrifugal dryer with timer | Centrifugal dryer with VFD | Pneumatic lid centrifugal dryer | Custom basket centrifugal dryer
Related Tags :
Email : info@surface-polish.com
Values as printed in the Jintaijin catalogue. Capacity figures are the catalogue's carrying capacity, not basket volume.
| Model | Carrying capacity (KG) | Specification L×W×H (mm) | Barrel size (φ×H, mm) | Motor (kW) | Heater (kW) | Voltage (V) | Net weight (KG) | Speed |
|---|---|---|---|---|---|---|---|---|
| 35 | 30 | 650×800×800 | 400×300 | 0.75 | 3 | 380 | 80 | 655 |
| 35A | 35 | 750×700×710 | 400×285 | 0.75 | 1.8 | 380 | 150 | 551 |
| 70 | 50 | 800×1000×850 | 500×400 | 1.1 | 3 | 380 | 100 | 551 |
| 70A | 60 | 900×580×730 | 480×290 | 1.1 | 3 | 380 | 170 | 551 |
Source: official Jintaijin catalogue, catalogue page. The catalogue prints the weight column as “Met weight”; it is shown here as net weight. Model 35A lists a 1.8 kW heater against 3 kW for the other three.
