Tumble Polishing Aluminum: How to Stage the Cut and Grade the Media
The mistake that ruins aluminium is not using the wrong machine. It is treating aluminium as steel with a softer media, taking one aggressive cut, and then trying to polish the damage out. Aluminium is soft and gummy: an abrasive graded for stainless does not slice it cleanly, it pushes the metal and leaves a rough, hard, grey surface. The usual recovery is to take more material off — the wrong direction, and how a part that only needed edge work ends up under tolerance.
The reliable route is a staged cut: several short steps, each with a media and compound matched to that step, each stage cleaned before the next so coarse grit is not carried forward. Below are the stage sequence, the grading that goes with it, the sizing rule, and where the process stops working. The parameters are a starting point for a trial — a published cycle assumes a material and a removal that may not be yours.
What you see when the aluminium stage is set up wrong
| What you see | What it usually means |
|---|---|
| A grey, matte haze that will not buff out | Coarse grit carried into the polish stage — the parts were not cleaned between stages |
| Surface rough and hard rather than bright | Cut too deep, usually a grade meant for steel |
| Edges rounded, crisp machined lines smeared away | Cycle too long, or one stage asked to do both the cut and the finish |
| Bright but blotchy, colour varying across the batch | Inconsistent base — a compound or rinse problem showing up as appearance |
| Worse after every extra hour, not better | The recovery attempt is removing more material, not polishing |
The last row is the signature failure: when more time makes it worse, find which stage put the damage there.
Why aluminium fails differently from steel
It is soft, so the cut is not clean. A sharp abrasive shears a chip from steel; on aluminium it tends to push metal ahead of it, producing smearing and a work-hardened skin rather than a bright cut. A coarser grade removes more per hour and leaves a rougher, harder surface that then has to be taken down again.
Compound flow is part of the mechanism. Aluminium conducts heat away quickly, but the surface is soft enough to gall and smear when parts rub dry. Compound keeps the cut lubricated and carries swarf away; it is not a cosmetic detail.
It goes dull rather than bright if left wet. Spent slurry dries into hard deposits, and water on a fresh surface leaves spotting within minutes.
The consequence for a buyer: ask for the stage sequence, not for a cycle time. A single number quoted for "aluminium polishing" hides the only decision that matters.
Stage the cut: what each stage is for
| Stage | Purpose | Media direction | What "done" looks like |
|---|---|---|---|
| 1. Cut | remove burr and machining or casting roughness | a cutting grade — plastic-bonded or a coarser ceramic | burr gone, roughness knocked down, edge still where the drawing put it |
| 2. Clean | get coarse abrasive off the parts | none — rinse, and wash out features that hold compound | no grit, no slurry film, no residue in holes |
| 3. Smooth | level the scratch pattern from stage 1 | finer ceramic or a light-cutting plastic | uniform satin; no deep lines left to polish over |
| 4. Clean | same reason, and the stage most often skipped | none | clear water off the part, features flushed |
| 5. Brighten | produce the reflective finish | fine or extra-fine grade, sometimes steel media to burnish rather than cut | even brightness, base colour consistent with the previous batch |
Two rules govern the sequence. Never run a fine stage over an uncleaned coarse surface — it is the most common cause of a haze that cannot be removed, and it is almost always blamed on the compound: if the coarse grit survives, the brightening stage is a coarse stage with a fine label. And do not ask one stage to do two jobs — removing a casting burr and producing a bright finish pull in opposite directions, so one aggressive run rounds the edges before the burr leaves.
Grade the media, and keep the two scales apart
Our media uses a six-point scale, and the two tables do not share the same letters:
- Wet grinding: VR / R / N / NF / F / FF
- Dry grinding: VR / R / M / MF / F / FF
VR is maximum stock removal, N is standard processing, FF is the final brightening grade, and the letters between step down in roughness. Aluminium lives in the fine half. The frequent failure is to use a media graded for stainless and then try to polish out the damage, which removes more material than the original process would have. A VR or R grade belongs on a robust casting with heavy flash and a short cycle, almost never on an aluminium part that will be seen.
On material family the trade is cutting rate against gentleness. Plastic media is a filled abrasive: it wears progressively, cuts gently and costs less, which makes it the usual starting point for aluminium, thin walls and anything where cutting through the wall scraps the batch. Ceramic media is harder, cuts faster and holds its geometry longer — what you want in the smoothing-to-gloss stages once the heavy work is done. The usual bands are 3–10 mm ceramic against 10–25 mm plastic, and aluminium uses the plastic end more than steel does. Shape matters as much as grade: ceramic is stocked as ball, angle-cut triangle, triangle and angle-cut cylinder from 2 mm upward by shape, plastic as cone from 5×5 and 6×6 mm and as larger sizes from 8×8 mm to 50×50 mm on the finer grades. A sharp angle cuts into a corner and a round bead burnishes a face, so the same size in two shapes is not interchangeable — the ceramic media shape guide sets out which shape reaches which feature.
Size the media against the smallest feature
Media should never be larger than about one third of the smallest feature on the part. A 3 mm blind hole needs media smaller than 3 mm, which means a fine grade and a longer cycle, and there is no way around it. A field check before committing a charge: put the part in a bag with a sample of the media — if it will not enter the features by hand, it will not in the machine.
Aluminium adds a twist. Because the material is soft, oversized media does not merely fail to reach the feature; it bridges over it and hammers the surrounding face, which on a thin-walled part shows up as a dished area next to the feature you were trying to deburr.
Pick wet or dry from the material, not from preference
Wet and dry are a consequence of material and finish, not a preference. A wet process uses a compound in solution that carries heat and swarf away and leaves a bright surface; it is the normal answer for steel and for anything that will be plated or passivated. Dry finishing suits aluminium and brass, where a wet process can leave a film or a stain, and it suits workshops where wet is not permitted — at the cost of being slower, producing dust and needing extraction. The trade is set out in dry polishing vs wet polishing.
The choosing question is what happens next. Going to anodising or plating, the base colour has to be consistent batch to batch, because those processes show every swirl left behind — so the finishing step is held to a consistent base rather than to "as bright as possible". Sold as finished, brightness and absence of haze matter, and a dry route with a fine compound is easier to keep consistent. Going into assembly where only edges matter, a short wet cut and a rinse is cheapest.
Aluminium-facing compounds are formulated for the metal rather than for steel: a green liquid polishing compound for aluminium, a paste version of the same family, and the wider finishing compound range behind them. Strongly alkaline chemistry attacks aluminium, and dry contact is where galling starts — so the compound is chosen for the metal and kept flowing.
Choose the machine by part size, not by habit
| Machine | What it does to an aluminium part | Fits when |
|---|---|---|
| Vibratory bowl | media flows past the part; observable and adjustable | general parts, mixed sizes, staged work you want to look at between stages |
| Vibratory tub | same flow in a longer open channel | long extrusions and large parts that will not fit a bowl |
| Centrifugal disc | part held against a rotating tool; controlled local cut | small parts where the finish must hold to a tolerance |
| Centrifugal barrel | high energy in small compartments | compact parts where a short cycle matters — with load control, because intensity is what rounds edges |
| Barrel / rotary | the whole charge rotates together | simple shapes that can tumble freely; the charge is part-specific and changeover is slow |
For large aluminium work the tub platform is the usual starting point, and the L series carries real numbers: L1300 1,200 L (42.4 cu.ft), working chamber 1,200 × 1,000 × 1,000 mm, 5.0 kW × 2; L1500 1,500 L, 5.5 kW × 2; L1800 1,800 L, 7.5 kW × 2. All three use a 20–35 mm polyurethane lining, which matters on aluminium because the lining is what the part touches when the media pushes it against the wall. For small precision work the centrifugal disc range holds one part against a rotating tool instead of tumbling a batch.
Machines run on three-phase 380 V or 415 V at 50 Hz, and noise is a real criterion on a large tub: expect 75–85 dB(A) at one metre, most of it from the vibrator, with isolation mounts, a flexible drive and a lined or enclosed tub as the three measures that bring it down.
Heavy casting flash and cold shuts. Mass finishing is a finishing process, not a repair process. If the defect is a fold of metal rather than a loose edge, correct it upstream — running longer on aluminium does not remove a fold, it rounds everything around it.
- Thin walls. Below roughly 0.5 mm the risk is distortion, not the cut. A high-energy process bends the part before it polishes it; reduce energy or change machine family, because shortening the cycle alone does not fix it.

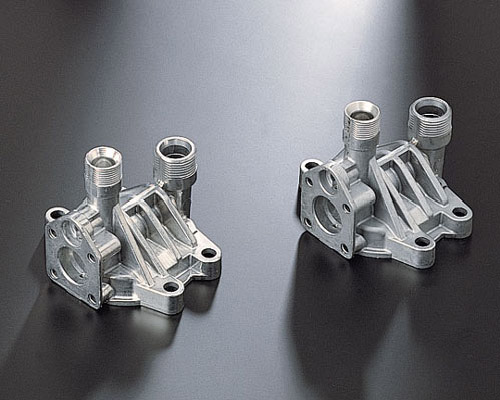

- Tight-pitch threads. Media locks into a fine thread and rounds the thread start. Use a smooth small media, mask the thread, or accept that thread forming comes after finishing.
- Deep blind holes and narrow slots close to the media size. Media enters and does not leave, and on aluminium the lodged piece usually cannot be pushed out without marking the part.
- Parts where a scratch is a scrap. Polishing removes material rather than filling it, and a deep scratch can only be levelled, which leaves a surface that scatters light differently. Deep concave geometry fails differently again, covered in how to polish concave aluminium parts.

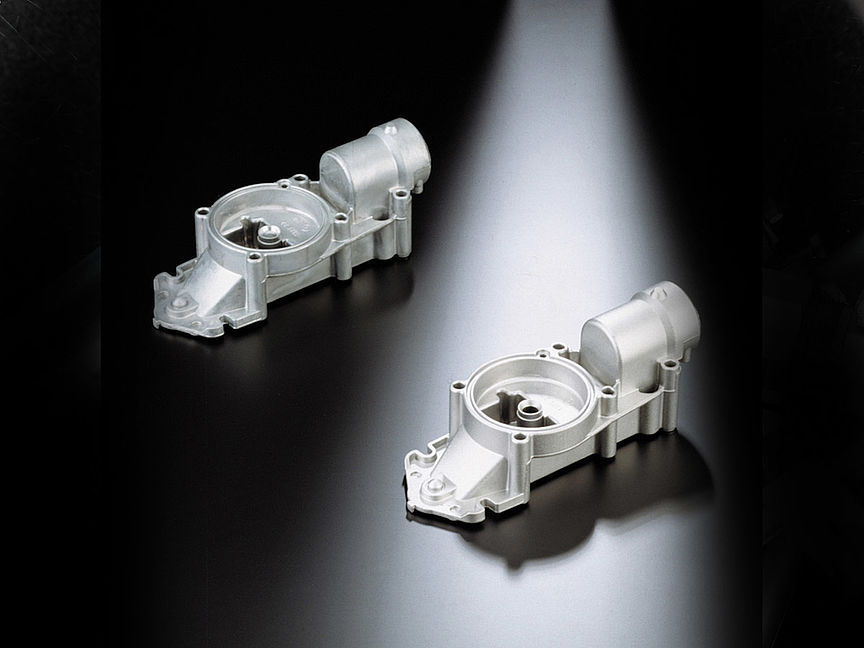

- Mixed alloys, or parts to be anodised to a cosmetic colour. Different alloys cut at different rates and finish to different colours, so one charge holds one alloy and one acceptance standard. If the base colour varies across a batch, the anodised colour varies with it — consistency comes from a fixed process, not from inspection at the end.
What to settle before you approve the quotation
- A trial on your worst-case part — the deepest feature or thinnest wall, not the average one. Send the alloy, the target finish and the finish you will accept; our trials return the finish with the cycle time and media consumption measured. We would rather run a trial on a few parts than quote a cycle for aluminium that has not been tested on it.
- The stage sequence in writing, with the media grade and size for each stage and the cleaning step between them. If a supplier quotes one cycle time for aluminium, ask what the stages are.
- The acceptance standard before the trial. Roughness target, which faces are protected, whether base colour is judged against a control sample for a later anodising or plating step.
- Media consumption per 100 hours. Media life runs 20–200 operating hours depending on material and cycle, wide enough that consumption has to be measured on the job. A light deburr runs 10–20 minutes and a high-finish polish 2–8 hours, and a staged process adds cleaning and handling on top.
- What ships with the machine. Standard packing includes the spare parts kit, a media and compound starter set, tools and manuals, and every machine is run with a media load before it ships.
- Lead time. A standard machine ships in 25–35 days from the deposit, a built-to-order configuration takes 45–60 days, and adding a separator or dryer extends it again. Media shipped with the machine adds about a week, sea transit from Xiamen is 30–40 days, and the minimum order is one machine.
- The drying step. A wet process without a centrifugal dryer leaves a film in the blind features that shows up as spotting, so the dryer belongs with the machine.
FAQ
Can I tumble polish aluminium in one stage if I use a fine media? Sometimes, on a part that only needs edge work. Where there is real roughness or a burr, one fine stage is slow and one coarse stage is rough, and no grade does both.
Why does my aluminium come out grey instead of bright? Three causes, in order of likelihood: coarse grit carried into the fine stage because the parts were not cleaned; a grade too coarse for the material; spent media that no longer cuts and simply rubs.
Is ceramic or plastic media better for aluminium? Plastic is the safer starting point — a filled abrasive that wears progressively and cuts gently, which suits soft alloys and thin walls. Ceramic cuts faster and holds its shape, so it belongs in the smoothing and brightening stages once the heavy work is done. Bands are 3–10 mm ceramic against 10–25 mm plastic, compared in more detail in ceramic vs plastic media for aluminium, brass and steel.
How long does a tumble polishing cycle take on aluminium? A light deburr is 10–20 minutes and a high-finish polish 2–8 hours, and a staged process adds cleaning and handling between stages. The figure that matters comes from a trial on your part, because a published cycle assumes a material and a removal that may not be yours.
Will polishing change the colour before anodising? Yes. Aluminium polishes to a slightly different colour than steel, and a part that is later plated or anodised has to be finished to a consistent base. That is a process question rather than a machine question, and it is why the brightening stage is held to a control sample rather than to "as bright as possible" — the same discipline that keeps aluminium bright in mass finishing aluminium parts.
+86-592-2381506
IPv6 network supported
