Drag Finishing Machines: The One Family Where the Part Is Held, Not Tumbled

Drag finishing is the odd one out among the mass finishing families, and the difference is mechanical rather than a matter of degree: the part is clamped in a fixture and dragged through the media, instead of being dropped into a charge and tumbled with it.

That single difference explains what drag finishing can do that no bowl, barrel or tub can, and it also explains why it costs more per part and why it is the wrong answer for a large share of the work that gets quoted for it.

This page is about the decision: what the fixture buys you, which parts justify it, and when a loose-media process will do the same job for a fraction of the cost.

What the fixture actually changes

In every loose-media process — bowl, tub, barrel, centrifugal — the part moves with the charge, or the charge moves past the part, but the part's orientation is not controlled. It presents whatever face the flow happens to give it, and the contact is statistical.

Drag finishing removes that randomness. The part is held in a fixture on a rotating carrier, and the carrier plunges it into a bed of media at a controlled depth, speed and angle.

Four things follow directly:

The last row is the cost. Everything above it is what you are buying.

When drag finishing is the right answer

Four situations justify the fixture cost, and they are worth checking in this order:

1. The part is large, heavy or high-value enough that a batch process is a risk. A turbine blade, a large die insert, a medical instrument with a finished surface that must not be marked — these are parts where one damaged piece costs more than the finishing.

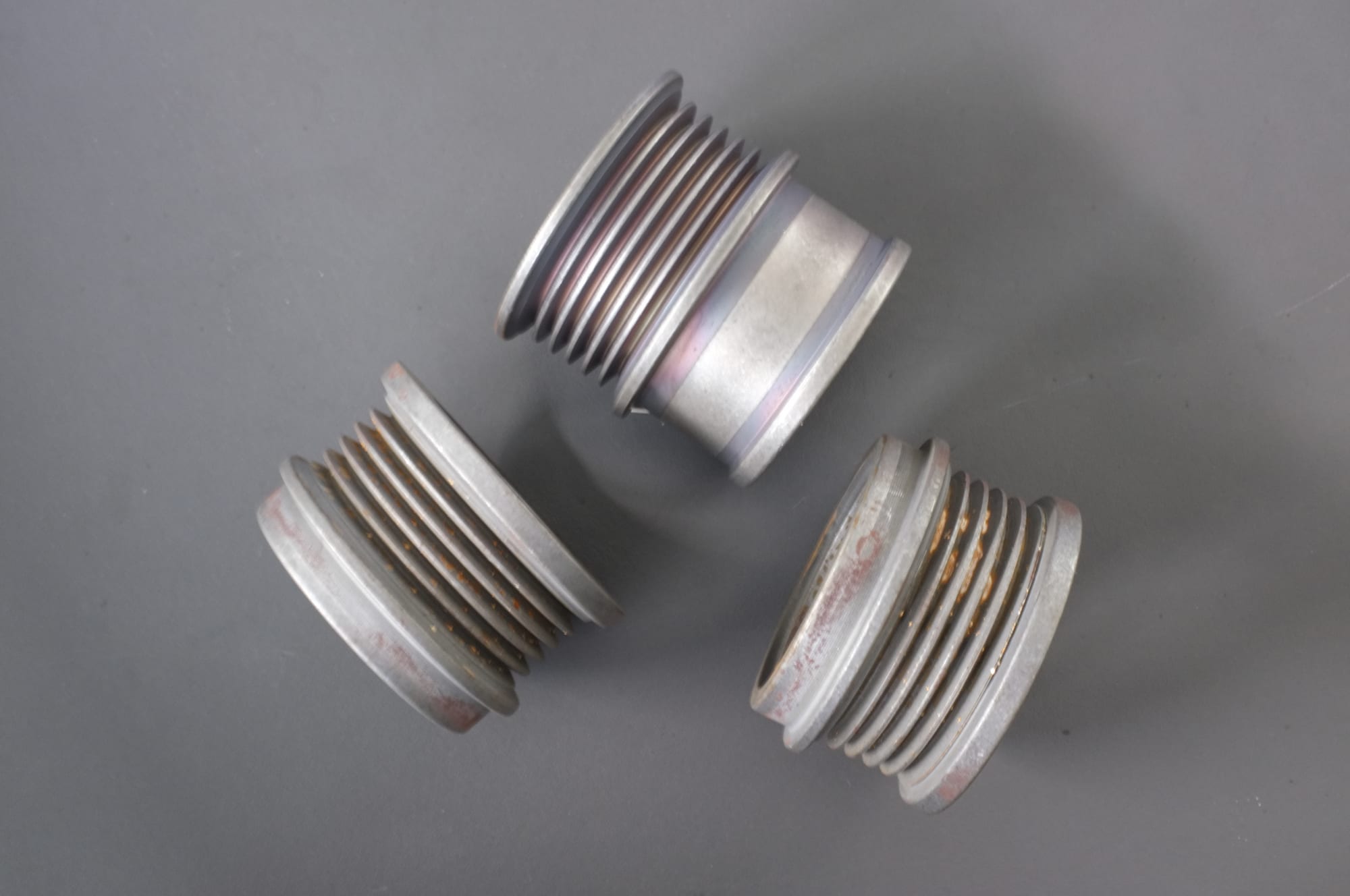

2. A specific region has to be finished and the rest must not be touched. Immersion depth and fixture angle let you work a leading edge, a weld toe or a specific radius while the rest of the part stays out of the media. No loose-media process can do that.

3. The geometry will not survive a loose charge. Long, thin, or fragile parts bridge, tangle or distort in a batch. In a fixture they are supported.

4. The part needs a directional or controlled edge. Because the orientation is set, drag finishing can produce a controlled edge on a defined feature — which is a different capability from "uniformly rounded".

The part profile that points at drag finishing, in one line: large or valuable, with a defined feature, in low or medium volume.

The arithmetic that decides it. A deburring cycle in a loose-media machine runs 10 to 20 minutes; a brightening cycle runs 2 to 8 hours. A drag finishing cell does not remove that time — it replaces a manual operation on a specific feature, so the comparison to make is against the hand operation it displaces, not against the bowl's cycle. If the part currently needs 30 minutes of skilled manual work on a leading edge, a fixtured cycle of comparable length is a straight win. If the part currently needs none, the fixture is pure cost.

And the consumable side scales the same way. Media life runs 20 to 200 operating hours depending on material and cycle, so the media cost per part follows the cycle length — which on a fixtured single part is charged to that part rather than shared across a batch. That is the second half of the cost comparison, and it is the half buyers forget.

When it is the wrong answer

This is the part competitors leave out, and it is where the money is wasted.

Small parts in volume. A fixture holds one part (or a few). If the part is a 10 mm fastener, the fixture cost per part and the loading labour per part will be several times the finishing cost. A bowl will do the same job at a fraction of the cost per part, and the statistical coverage is good enough for a part that small.

Parts with no critical feature. If the requirement is "break all the edges", drag finishing is solving a problem that does not exist. The fixture buys control of orientation, and if nothing depends on orientation, you are paying for nothing.

Simple, robust geometry. A flat bracket with a general deburr on all edges will come out of a vibratory bowl in the same condition, in a fraction of the time, with no fixture to make.

A feature smaller than the media can reach. Drag finishing gives control of orientation, not of reach. Media should never be larger than about one third of the smallest feature, and that rule applies here exactly as it does in a bowl — a 3 mm slot needs media below 3 mm, in a machine that costs several times more. Control of orientation does not buy access.

High mix, low volume. Every part family needs its own fixture. A shop running forty part numbers needs forty fixtures, and the fixture cost plus the changeover will dominate. This is the single most common reason a drag finishing cell underperforms.

When the burr is the whole problem. Drag finishing is a surface and edge process. If the only requirement is removing a burr from a robust part, the extra control is not needed and the throughput penalty is the whole cost.

What the published figures look like, for scale

We do not publish a drag finishing range of our own — we build to a workpiece, which is discussed below. To give a sense of the scale these machines run at, published figures from a European manufacturer's catalogue (OTEC DF series, 2019 sample) sit in this range:

All five published models list a maximum immersion depth of 250 mm. The range runs from a small unit with a 60 litre drum and 3 workstations up to a 200 litre drum with 7/8 workstations — note that the two smallest are not simply scaled-down: the DF 40 and DF 80 carry 3 and 5 workstations in a much smaller footprint, which is what a shop with one high-value part family actually needs.

One caveat on this table, stated because it matters: the source is a manufacturer's PDF whose printed revision is not established, dated 2019 by its metadata. It is used here as an order of magnitude for the machine class, not as a current specification, and the terms the machine is offered on today are not established by that document. The figures tell you what size of machine this family is; they do not tell you what to buy. Read those figures as an order of magnitude, not as our specification. They tell you that a drag finishing machine is a floor-standing unit of roughly 1.5 to 1.8 m in each horizontal dimension, with a drum in the 80–200 litre band and 3 to 8 workstations — which is the information a buyer needs to judge whether the cell will fit and whether the throughput is in the right order. Exact figures for a specific part have to come from the fixture and the trial, not from a catalogue.

What a supplier actually needs before quoting one

Drag finishing is quoted against a fixture, and the fixture is quoted against the part. That means the enquiry has to carry more information than a bowl or barrel enquiry:

1. The drawing, with the feature that has to be finished marked, and the surfaces that must not be touched marked.
2. The stock to be removed at that feature, in tenths of a millimetre — not "polish".
3. The part's mass and how it can be held. Where the fixture can grip without marking the part.
4. The immersion requirement: the whole part, or a band of it.
5. The volume and batch mix — how many part numbers, and how many of each.
6. What the acceptance criterion is, and whether a boundary sample exists.
7. The site conditions: the cell needs three-phase 380 V or 415 V at 50 Hz and a floor that takes the machine's mass, and it runs at 75 to 85 dB(A) at one metre. On a floor-standing unit of this size both are building decisions rather than machine decisions.

The fixture is where a drag finishing project lives or dies. A fixture that grips the part by a cosmetic face, or that lets it move in the holder, produces a result that cannot be repeated, and no process tuning fixes a fixture.

What we will and will not say about our own range

We build finishing equipment and the media and compounds that run in it, and we build to a workpiece rather than to a catalogue line. That means:

• If your part justifies drag finishing, we will discuss building one around your fixture and your part — the same way we would specify any other machine, from the drawing and a trial.
• We will not quote a catalogue model number for drag finishing, because we do not publish one. What we will do is work from your part, propose a configuration, and run a trial on your parts before the specification is fixed.
• The trial is the deliverable, not the datasheet: the fixture, the media, the immersion depth and the cycle are established on your part.

This is the same basis on which we quote every other family. It is also why the enquiry list above is longer than it looks — a drag finishing quotation is a fixture quotation first.

Frequently asked questions

What is the difference between drag finishing and vibratory finishing? In vibratory finishing the parts are loose in a charge and the charge moves past them; the contact is statistical and the orientation is not controlled. In drag finishing each part is clamped in a fixture and dragged through the media, so the contact on each face is a setting. The fixture costs money and limits throughput, and in exchange it gives control that a loose charge cannot.

Is drag finishing faster than vibratory finishing? Per part, usually not — a fixture processes one part or a few at a time, while a bowl processes a batch. The published claims for drag finishing are about processing intensity per unit area on the part rather than throughput, and the two are not the same measure. Where drag finishing wins is on a defined feature of a large part, where the alternative is not a faster batch process but a manual operation.

Can drag finishing replace manual polishing on a complex part? For a feature that can be reached by the media bed and held in a fixture, it can replace a manual operation and make the result repeatable. For a feature the media bed cannot reach — a deep internal passage, a blind recess — it cannot, and the honest answer is a different process.

Do I need a different fixture for every part? Yes, effectively. The fixture is cut to the part, so a job with four variants needs four sets. That is the reason drag finishing suits low-to-medium volume, high-value work rather than a high-mix shop.

What volumes justify a drag finishing cell? There is no universal threshold, but the structure is: the fixture and loading cost per part has to be small relative to the value of the part being protected. That points at low or medium volume, high value per part, with a defined feature — not at high-volume small parts, where a bowl is both cheaper and adequate.

Can the machine finish only part of a component? Yes — that is one of the reasons to use it. Immersion depth is a setting, so the fixture can present only the leading edge, a weld toe or a specific radius to the media bed while the rest of the part stays clear.
