Media Tumbler: What the Name Covers, and How the Part Picks the Type

A media tumbler is not a machine. It is a class name that buyers and salespeople use for any finishing machine that works by putting parts into a charge of abrasive media and moving that charge — and under that one name sit four mechanisms that behave nothing alike: a rotating barrel, a vibrating bowl, a vibrating tub, and a high-energy centrifugal barrel or disc.

That is why two people can both say "we need a media tumbler" and mean machines that differ in what they can reach, what they cost to run, and what part shapes they ruin. This page separates the class name from the machines inside it, and then does the only thing that actually settles the choice: works from the part's shape and how it has to be presented, not from the machine's label.

The process on the machine — the media grade, the stock to be removed, the cycle, when the charge is spent — is a separate question and is covered in deburring process and in the vibratory machine selection guide. This page stops at the type decision.

The four machines behind the name

Type	How the charge moves	What that buys	What it costs
Rotary barrel	The whole chamber rotates; the charge and parts tumble together, sliding down the barrel wall	Simple, robust, gentle on the part's own geometry; parts take the same treatment from every side eventually	Slow; the part presents whatever face the tumble gives it; long or flat parts can slide rather than roll
Vibratory bowl	A spring-mounted bowl with an eccentric motor drives the charge in a toroidal flow — up the wall, down the centre	Media flows past the part in every direction, so it reaches faces a barrel never presents; the general-purpose answer for a mixed load of small parts	Parts must be small enough to be carried by the flow; long parts bridge
Vibratory tub	A straight-sided chamber vibrates, driving the charge as a wave along its length	Carries long, heavy and bulky parts a bowl cannot; loading is open and simple	The ends of a long part see different contact from the middle
High-energy (centrifugal barrel or disc)	Sealed barrels rotate about their own axis at speed, or a disc spins the charge against a held part	A far more energetic cut, so a short cycle on robust parts; disc versions hold the part for a controlled local cut	Wrong for thin walls and for anything that marks; per-part cost is higher

Two shapes of real machine show what that table means in practice. A barrel is a chamber with a door — the rotary barrel line in the catalogue runs from 160 L with a 1.1 kW motor at 0–50 rpm up to 400 L with 2.2 kW at 0–50 rpm, and the barrel holds a load of 80 L and 200 L respectively. A vibratory bowl is a round chamber with a central hub and a flow you can see, and a tub is a straight chamber that carries the charge as a wave. Same media, same part, different answer.

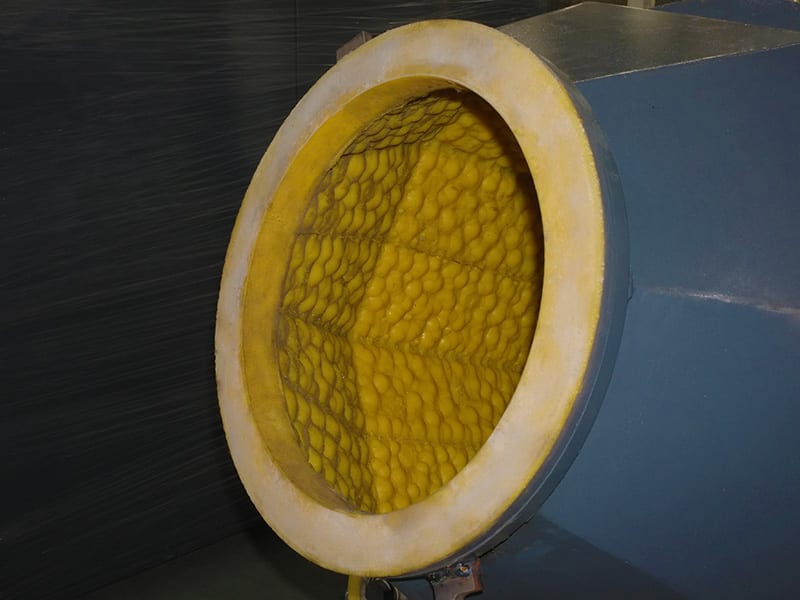

A round bowl interior: one of the four machine types sold under the single name media tumbler.

The part picks the type: four questions, in this order

1. Will the part be dropped into the charge, or held? If it can be dropped in, the answer is one of the four loose-media types above. If it must be held in a fixture — a long shaft, a part whose presentation has to be controlled — you are outside this class and into drag finishing or disc work.

2. How long is the part against the chamber? This is the single most reliable disqualifier. A part longer than roughly a third of the chamber's usable dimension will bridge: it stops moving, the middle gets no contact and the ends get too much. A tub handles length better than a bowl because the wave runs along the chamber; a barrel handles it worst, because a long part lies across the tumble and slides.

3. How small is the smallest feature? Media must not be larger than about one third of the smallest feature on the part, which sets a ceiling on media size, which in turn decides the type: fine media circulates poorly in a barrel's slow tumble, and fine media is harder to separate from small parts. Small features plus small parts point at a bowl and its separation screen.

4. Is the process wet or dry? This is not a preference, it is a property of the machine as built. Wet means a chamber with a compound bath, a drain, a pump and a drying step after it; dry means a chamber that keeps the part cool and dust extracted. Ceramic, porcelain and plastic-bonded bodies run wet; walnut shell, wood, bamboo and stone powder run dry. A barrel for dry work is usually lined in wood or bamboo rather than steel, for the reason the next section explains.

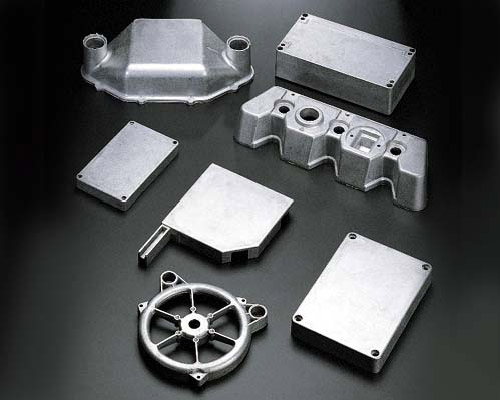

Die-cast housings with deep ribs: the part profile that pushes the choice from bowl to tub.

The numbers that disqualify a type

Three figures settle most of the argument before any trial:

Chamber volume against load volume. A working rule for a vibratory chamber is that the load occupies about a third of the working volume and the rest is media that has to circulate. A chamber bought "big enough for the batch" and then packed to the brim cannot shear the media, so the finish is soft and uneven and the cycle runs longer than the published time. On the catalogue's barrel line the nominal barrel volume and the carrying load are stated separately — 160 L holding 80 L, 400 L holding 200 L — which is the ratio the rule describes.

Rotation or vibration speed against the charge's weight. A barrel at 0–50 rpm and a high-energy centrifugal barrel at 0–170 rpm with a 15 × 4 kg loading pattern are not the same process at different speeds; one lets the charge tumble under gravity, the other presses it against the part. Buying the faster machine to "have the option" gets you a machine that damages the parts the slower one was right for.

Noise and supply, because they are building decisions. Expect a media tumbler to sit in the 75–85 dB(A) at one metre band, and expect to need three-phase 380 V or 415 V at 50 Hz, with 220 V available only on the smaller units. Neither can be fixed by choosing a different machine later; both are decided by where the machine goes and what the building has.

What the four types do badly, by part

This is the table to keep, because it is where the wrong type gets bought:

Part	Type that fails	Why
Long slender shafts, tubes, extrusions	Rotary barrel; small bowl	The part lies across the tumble or bridges the flow, so contact is at the ends only
Thin-walled housings, sheet below roughly 0.5 mm	High-energy types; heavy charge in any type	Distortion arrives before the finish does
Parts with a fine thread or a 3 mm feature	Any type running media above one third of the feature	The media lodges rather than finishes, and the feature is damaged on removal
A mixed load of many small parts	Tub, for most batches	The open chamber lets parts sit in one place instead of being carried past the media
A part needing an isotropic, non-directional finish	Any single-direction process	A rotary barrel leaves a direction of its own; the finish direction is a property of the motion
A single large, heavy casting	Bowl	The part cannot be carried by the flow, and it shields its own surfaces

The first and last rows are the expensive ones, because both parts fit in a barrel on paper. A barrel's capacity is quoted in litres, and a long part that physically fits will still not be finished correctly.

Where a media tumbler will not do the job at all

Burns inside a deep cross-hole or at a thread root. Loose media does not enter and does not stay; the answer is magnetic finishing, which works a flexible needle mass into the feature.
A part that must come out with a sharp edge. Every one of the four types rounds whatever it touches. There is no setting that leaves the edge untouched.
A part that has to be finished on one defined face only. Loose media treats all faces alike; masking is not a process.
A part too large or too few to justify a batch. One-off work on a large component is a different class of machine, not a bigger tumbler.
A finish specified so that one bright part is not enough. Batch consistency is a separate discipline from "can this machine make it bright"; a type that can produce the finish can still fail on repeatability.

If the part is on this list, changing the media grade will not rescue it. That is the reason this page comes before the process page: the type decision is above the charge decision.

What to settle before the type is quoted

The heaviest and the longest part, named separately. Not the average part. The heaviest sets the loading, the longest sets the type.
The smallest feature, with the drawing detail. Holes, slots, thread pitch, internal radii. This is what the one-third rule is applied to.
Wet or dry, decided by material and finish. Wet for steel and for anything that will be plated or passivated, with a drying step budgeted; dry for parts that would stain, distort or pick up a film.
The finish target as two numbers. Stock to remove, and appearance. A published cycle assumes a material and a removal that may not be yours.
The acceptance criterion, in writing, before the trial. A trial without one cannot fail and therefore cannot pass.
Volume and mix. A machine configured for one part family spends its life idle on a high-mix shop; the type that changes over cheaply is worth more than the one with the higher hourly rate.

On delivery, a standard machine ships in 25–35 days from the deposit, a built-to-order configuration in 45–60 days, with media and compound adding about a week. MOQ is one machine, terms are 30% deposit with the balance against the shipping documents, and standard packing includes the spare parts kit, a media and compound starter set, tools and manuals. Every machine runs with a charge of media before it ships.

FAQ

Is a media tumbler the same as a vibratory tumbler? No. A vibratory tumbler is one branch of the class: it moves the charge by vibration. A rotary barrel moves the charge by rotating the whole chamber, and a high-energy machine presses the charge with centrifugal force. All of them are media tumblers, and the differences between them decide what part shapes they can finish.

Which type is best for small metal parts? A vibratory bowl, in most cases: the flow carries the parts past the media in every direction, and the bowl is the type that separates small parts from the charge most easily. A barrel is the cheaper answer when the parts are simple, robust and can be tumbled freely.

Can one machine cover both my small parts and my long shafts? Rarely well. Length is the disqualifier that cannot be tuned away — a long part bridges in a bowl and slides in a barrel. A tub covers the middle ground, but a shop with both extremes usually ends up with two types rather than one compromise machine.

How much media does the machine need? As a working rule the load takes about a third of the working volume, with media circulating in the rest. The exact volume follows from the load, the media size and the geometry, and it is confirmed on a trial rather than read from a catalogue.

Do I need a different machine for dry work? Yes. Wet and dry are not two settings of one chamber: the bodies, the compound, the containment and the finishing step all differ, and the dry barrel is typically built with a wood or bamboo working surface. Buying across that line is the most expensive way to lose a batch.

How long does the charge last? Media life runs 20–200 operating hours depending on material and cycle. Three signals say it is done before it is dead: the finish stops improving, a matte grey haze appears, and the cycle time creeps up by around 20% for the same result.
