Tumble Deburring: How to Set the Cycle and What It Will Not Remove

Tumble deburring will take a light burr off a machined or stamped part in 10 to 20 minutes. It will not take a casting gate off, it will not reach a burr inside a cross-hole, and it cannot both remove a burr and leave a sharp cutting edge on the same feature. Those three sentences decide most of the jobs this page is about.

What follows is how to tell which job you have, what cycle to start from, and how to measure whether the burr came off — a burr that was folded rather than removed shows up again at plating.

What the shop floor shows when a tumble deburring cycle is set wrong

Four outcomes cover most failed cycles, each pointing at a different variable. Read the part before touching the machine:

What comes out of the machine	What it usually means
Burr still standing, edges polished bright	The media is too fine for the burr root, not too worn — a grade problem, not a time problem
Burr gone, edge radius out of tolerance	Grade too coarse for the burr, or the same charge left running after the burr went
Burr gone on the outside, still there at a cross-hole or in a slot	The media cannot physically enter — a size and shape problem no cycle length will solve
Half the batch clean, half still burred	Loading or part-on-part shielding; the batch is being read as an average when the worst part is the one that ships

The third row is the one that gets bought twice. A team extends the cycle from 20 minutes to two hours hunting the burr inside a cross-hole, rounds every external edge, and the burr is still there because a 6 mm triangle never entered a 2 mm hole.

Why a burr is not one job

Tumble deburring is sold as a single operation. In the charge it is at least three different operations, with different economics:

An attached burr with a root. A milling or turning burr is still connected to the parent metal along a root. Removing it means cutting through that root, which needs a grade with real cutting capacity and enough time for the media to work the edge repeatedly. This is where a coarser grade pays for itself.

A folded flap or a rollout. Stamping and punching often roll the burr over instead of standing it up. A flap is not cut off, it is bent back and forth until it separates — and until it separates, the part can pass a visual check and fail later. If your incoming burr is a flap rather than a root, plan to inspect the edge, not the surface.

A thermal or coarse-cut edge. Laser cut, plasma cut and heavy casting flash are not the same problem as a machined burr. The dross is thicker than an edge break allowance, and a cycle sized for edge breaking will either fail on it or round the rest of the part while chasing it. Those jobs sometimes need a mechanical first pass, and a quotation offering one tumble cycle for a laser-cut profile is guessing.

The distinction matters because the amount of material to be removed and the finish required are not the same job, and a cycle can only be set for one at a time. A 10-minute edge break and a 2 to 8 hour bright polish are both "tumble deburring" in a quotation, and they are not interchangeable.

Check these seven things before you set a cycle

Work through the drawing, not the sample. Each item that is skipped is a reason the first trial disappoints:

Where the burr is. Which face, which edge, is it on a through-edge or at a cross-hole, and can a media body of your intended size physically reach it. If the answer to the last part is no, stop: the rest of the list cannot rescue it.
How strongly it is attached. Root burr, rolled flap, dross, or gate. This decides whether you need a cutting grade or a separating action.
How much you may remove, in absolute terms. Not "deburr" — how many hundredths of a millimetre of edge radius the drawing and the customer accept. That sets the grade as much as the burr does.
The smallest feature on the part. Smallest hole, narrowest slot, tightest thread pitch. Media must not be larger than about one third of that feature; a part with a 3 mm blind hole needs media under 3 mm, which forces a fine grade and a longer cycle.
Which edges must stay sharp. A cutting edge, a scraper lip, a thread start, a knife bevel. Media does not know which edge is functional.
The material and its condition. Soft aluminium smears and cuts fast; a work-hardening alloy needs a short controlled cut rather than a long gentle one; hardened steel cuts more slowly and wears the media faster.
What happens downstream. Plating, anodising, passivation, assembly, inspection. A burr folded flat gets buried under a plated layer rather than removed by it, and a plating line that blisters at an edge is often looking at a deburring result.

A one-minute field check: put three parts in a bag with a sample of the media and shake it. If the media will not reach the burr by hand, it will not in the machine either.

Setting the cycle: starting points, then a trial

These are starting points, not a quotation. A published cycle assumes a material and a removal that may not be yours, which is why the numbers below are written as ranges and why every one of them ends at a sample trial.

Time. A light deburr on small parts runs 10 to 20 minutes. A small-part vibratory cycle in general sits between 15 minutes and a few hours, and a vibratory bowl batch is typically run in the order of 20 minutes to 2 hours. The 2 to 8 hour band belongs to high-finish polishing, not to deburring — if a deburring quotation comes back at four hours, ask what the extra time is finishing rather than removing.

Grade. For a standing burr with a root, start at the coarse end of the wet-grinding scale — VR (very rough, maximum stock removal) or R (rough, heavy cutting). For a general edge break, N (normal) or NF (normal fine) is the working range. F and FF are finishing and brightening grades: they improve the surface and will not take a burr off in a sensible time, the most common mismatch in a first trial.

Size and shape. Follow the one-third rule, then pick shape by where the cut must land. A sharp angle cuts a corner; a round bead burnishes a face. If a part has an open face and a thread, no single shape serves both well, and staging the process beats a compromise media.

Load. Keep the parts to roughly a third of the bowl volume. A bowl packed to the brim cannot shear the charge properly: parts shield each other and the cycle takes longer while doing less.

Machine choice. A barrel tumbles the whole charge together, suiting simple shapes where media only has to reach the outside. A vibratory bowl drives media past the part in a flow, reaching features better and changing over to another part in minutes. A tub answers long or heavy work: our range runs from L1300 at 1200 L / 42.4 cu ft with two 5.0 kW motors to L1800 at 1800 L / 63.6 cu ft with two 7.5 kW motors, all with 20 to 35 mm polyurethane lining. Whether that suits your part is a trial question.

How to tell whether the burr actually came off

Deburring gets signed off on appearance more than on measurement, which is how a folded burr ships. Four checks, all cheap:

Burr height before and after, on the worst feature, measured with the same method both times. If you have no before-measurement, the after-measurement cannot tell you what the cycle did.
Edge radius or edge break, measured on a part from the start of the batch and a part from the end. A batch that is correct at minute 5 and over-rounded at minute 60 needs a shorter cycle, not a smaller media.
Surface roughness where it matters. Deburring moves roughness as a side effect; recording it lets you see whether the charge is cutting or just polishing.
Inspection under fixed light at a fixed angle. Water film hides scratches and a wet part reads brighter than a dry one, so dry the part first and then judge it.

Keep one reference part from each stage; when a batch is disputed weeks later, it settles the argument faster than a re-run.

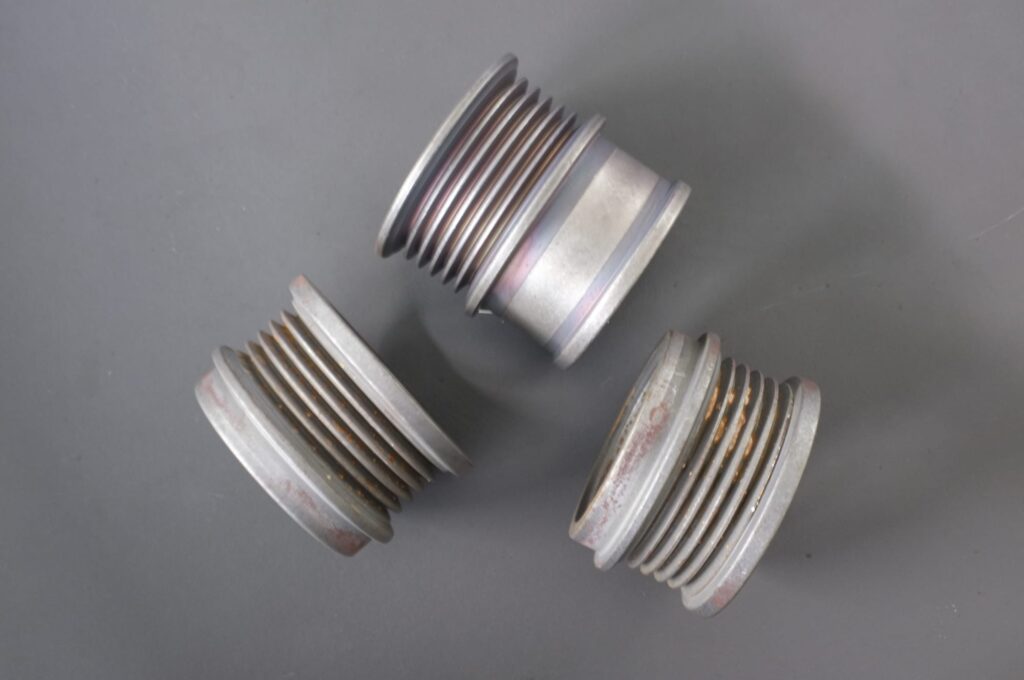

Threaded fittings in the incoming condition, with rust and oxide in the thread crests and groove walls — What tumble deburring has to deal with on a threaded part. The **oxide and rust sitting in the thread crests and groove walls** is not a burr, but it is removed by the same aggressive stage — and the thread is the feature that a deburring cycle most easily damages while removing it.

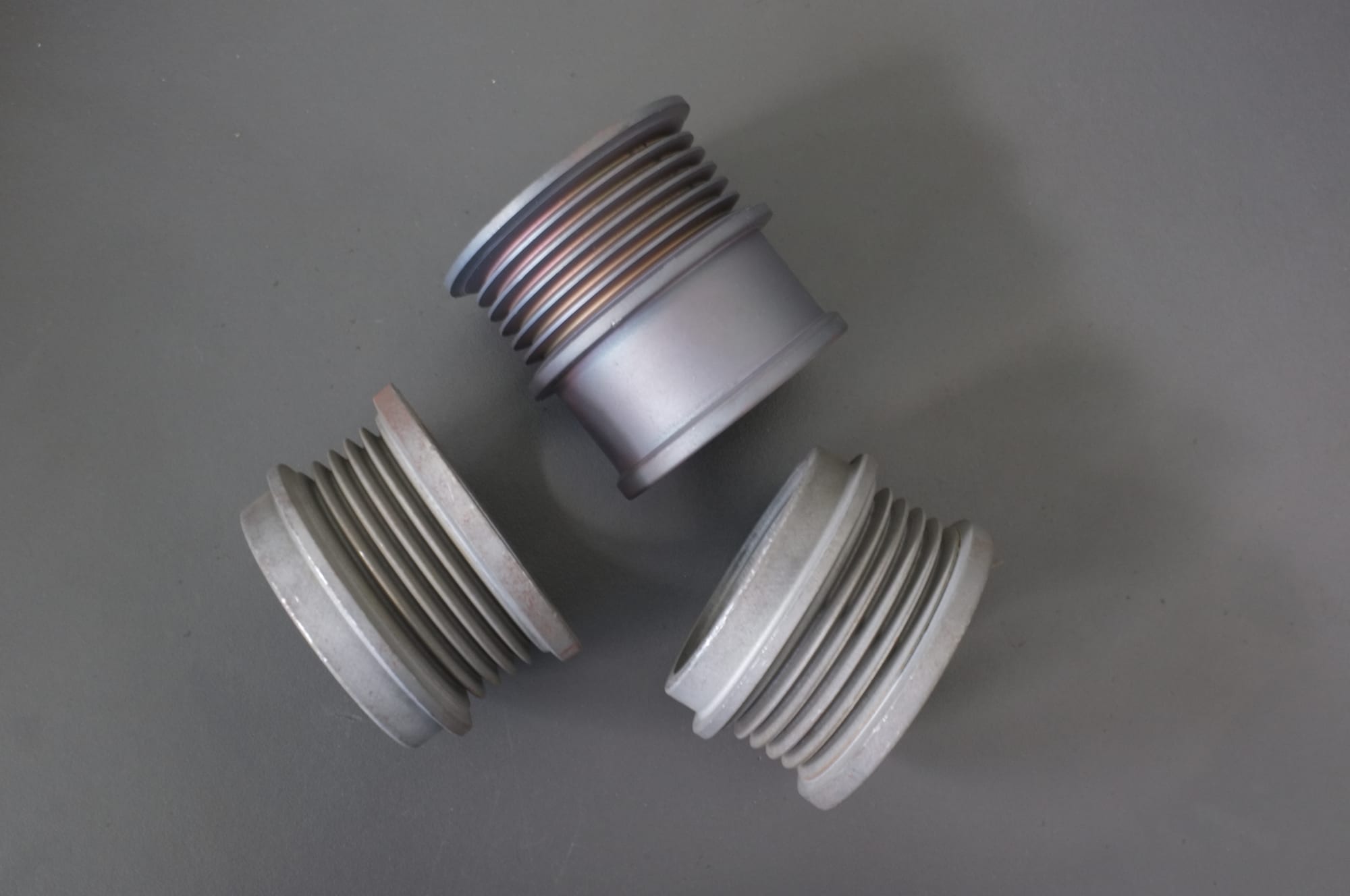

The same fittings after the deburring cycle, with clean crests and even surfaces — After the cycle. The oxide is gone and the surface is even, and the **thread crest is visibly rounded at the lead-in** — acceptable on a fitting, a defect on a fastener that has to hold torque. That distinction belongs on the drawing, not in a post-mortem.

Tumbling deburring and vibratory deburring: where the line actually sits

These two terms are used interchangeably in quotations and they should not be, because the choice changes what the part comes out like — not just how fast.

The mechanical difference. "Tumbling" describes a machine family where the whole charge rotates together: a barrel turns, and the parts travel with the media. "Vibratory" describes a family where the charge is driven in a flow — a bowl or a tub — and the parts sit in that flow. The abrasive reaches the part differently in the two cases, and that difference decides the answer for a given geometry.

What the part has	Tumbling (barrel)	Vibratory (bowl / tub)
Simple external edges, robust part	Good — and the simplest machine to maintain	Good
Mixed load of small parts	Fair — parts travel together, can nest	Better — the flow separates them
Internal features, recesses	Poor — the charge falls past, it does not flow in	Moderate — better access, but still limited
Part-on-part contact must be avoided	Better — a cascade is gentler than a flow-driven charge	Moderate
Long or heavy parts	Fair if the barrel is long enough	Tub: good. Bowl: poor (bridges)
Short cycle for a bright finish	Slow	Faster

The practical decision rule. If the part is fragile, or the main risk is parts marking each other, tumbling is the gentler process and often the right one. If the part has features the charge has to flow into, or the load is a mix of small parts, vibratory reaches them better. If the part is long, the answer is a tub rather than either — and if the burr is inside a cross-hole, neither family reaches it, which is a different process entirely.

The confusion that costs money. A quotation that says "tumbling" and prices a vibratory machine, or the reverse, is not a pricing error — it is a process substitution. The two do not produce the same edge result at the same cycle time, so the acceptance criteria agreed at the trial have to match the family that was actually quoted.

When tumble deburring is the wrong answer

Most suppliers skip this, and it is why a trial beats a catalogue:

An edge that must stay sharp. Blades, cutting tools, scraper lips, thread-cutting points. A tumble cycle breaks every edge it can reach, including the functional one.
Fine threads under a pitch tolerance. Media locks into a fine thread, and the thread is then either damaged on removal or left with a witness mark. Small smooth media or masking reduces the risk; a thread formed after finishing removes it.
Blind holes and deep pockets. The media enters and does not leave. Decide the separation and cleaning step before you buy the charge, not after the first batch.
Walls under roughly 0.5 mm. The risk is not the cut, it is distortion: the process bends the part before it polishes it. Shortening the cycle does not fix that; the energy has to come down or the machine family has to change.
A burr you cannot reach. Inside a cross-hole, at the root of a slot narrower than the media, under a flange. Magnetic finishing works a flexible needle mass into slots, cross-holes and thread roots that a loose media cannot enter — if the burr is in one of those places, this is a process-selection question rather than a deburring question.
Thick dross or a casting gate. More stock than an edge-break allowance. Cutting it in a tumble charge either takes a very long time or takes the surrounding geometry with it.
An assembled component. Media enters the gaps between the parts and stays there. Deburr before assembly.
Work-hardening alloys and contamination-sensitive parts. Titanium work-hardens and picks up contamination from the charge, so the media has to be dedicated and clean, and the cycle short and controlled. A charge that has run another material is not a charge you put titanium into.

If you are comparing machine families first, see vibratory finishing machines, rotary barrel tumbling machines and tub vibrators. On measuring the result, how to measure burr height, edge change and Ra after deburring; on the geometry that sets media size, how to set media size for small holes, slots and internal cavities; on the failure that follows a too-large charge, how to prevent tumbling media from lodging in holes, slots and threads. Media grades and size ranges are on the ceramic media range.

What to ask before you approve the deburring quotation

Four questions separate a usable quotation from a wish:

"Will you run a trial on our worst-case part, not our average one?" That is the only way to find out that a feature traps media or that a burr is thicker than the quotation assumed. Our standard route: you send representative parts including the worst case, the material and the finish you need, and you get them back with the cycle time and the media consumption measured.
"What is the acceptance criterion, in writing, before the trial starts?" Burr height, edge radius, roughness, and which faces are protected. A trial without a written acceptance standard only tells you what the parts look like.
"What grade and size are on the order?" Not "ceramic media" — the grade letter and the size range. A grade such as 2 to 4 mm covers a spread that matters on a fine feature, and the grade letter is what sets the cut.
"What is the consumable consumption per batch, and when does the charge get replaced?" Media life runs from about 20 to 200 operating hours depending on material and cycle, and the reliable replacement signals are that the finish stops improving, the parts start showing a matte grey haze, and the same result needs a cycle about 20% longer. Ask for consumption in kilograms per 100 hours; a supplier who cannot state it is not quoting a usable number.

On timing: a standard machine ships in 25 to 35 days from the deposit, a built-to-order configuration takes 45 to 60 days, and media and compounds shipped with it add about a week. Minimum order is one machine; standard packing includes the spare parts kit, a media and compound starter set, tools and manuals, so the first trial can run on arrival. Every machine runs with a media charge before it ships.

FAQ

How long does tumble deburring take? A light edge break on small parts is 10 to 20 minutes; a bowl batch in general runs 20 minutes to 2 hours. Longer than that is usually either a burr the grade cannot cut or a feature the media cannot reach, and neither gets better with time.

Can tumble deburring remove a burr inside a cross-hole? Usually not. A loose media has to enter the hole to cut the burr, and the intersection burr sits where the media cannot reach. Magnetic finishing is the process built for that geometry. Masking and a secondary operation are the other honest answers.

Will tumble deburring round my edges? Yes — every edge the media reaches is broken, and the amount is a function of grade and time. If the drawing gives an edge radius, that figure belongs in the trial acceptance criteria, not in a post-mortem.

Can deburring and polishing be done in one cycle? Not reliably. The grade that cuts a burr leaves its own matte cutting pattern, and the grade that brightens takes too long to remove a burr. A staged route — cut, then refine, with the charge cleaned between stages — is more reproducible than one long compromise cycle.

Do I need a different media grade for each part? Yes, and the grade is part-specific rather than machine-specific. The same machine covers deburring and brightening by changing the media and the time; that is why a single charge run on everything produces inconsistent results.
