Tumbler Polisher: Getting Consistent Brightness, Not Just a Bright Part

A tumbler polisher is bought for one outcome that is usually stated badly: a batch that looks the same. Not "a bright part" — anyone can produce one bright part out of a batch. The spec that matters is whether part one and part four hundred match, and whether next month's batch matches this month's.

That is a different problem from deburring. Deburring is about removing a geometric feature; polishing is about producing a surface appearance reproducibly. It needs different media grades, a different compound logic, a longer cycle, and — this is the part most buyers miss — a different acceptance criterion, because "bright" is not measurable and "same brightness across the batch" is. This page is about how brightness is produced, why it drifts, and where a tumbler polisher should not be asked to deliver.

What brightness actually is, mechanically

A polished surface is not a coated surface. Nothing is added; material is removed, in progressively finer steps, until the remaining scratches are too small to scatter visible light. That has two consequences that drive everything else on this page:

Brightness cannot be polished in if it was not cut in. Each stage has to remove the scratches of the stage before it, completely. A polish stage run over a surface that still carries coarse scratches does not remove them; it polishes the tops of them, which reads as a grey haze rather than a shine.
Every stage must be followed by a clean change. Carrying coarse grit forward is the most common cause of a dull result, and it is usually blamed on the compound.

So the process is a sequence, and its quality is set by how carefully each step erases the previous one — not by how long the last step runs.

Why brightness drifts across a batch

If one part comes out bright and another does not, the cause is almost always one of these six, and they are distinguishable:

Symptom	Cause
Some parts bright, others hazy, mixed through the load	Charge contaminated with coarse grit, or media not fully mixed
The last parts in the batch duller than the first	Compound exhausted mid-cycle, or swarf not being carried away
Bright at the start of the week, dull by Thursday	Charge is spent — the media has worn past its cutting geometry
Bright on outer faces, hazy in recesses	Those faces never saw fresh compound; the flow did not exchange there
White or cloudy film rather than haze	Drying and water quality, not the polishing stage
Bright but slightly different base colour between batches	Incoming surface differed, or the stage before was run differently

The first three are process control. The fourth is part geometry and loading. The fifth is a downstream problem that gets misattributed to polishing constantly — water spots and cloudy stainless is a drying issue and polishing harder will not fix it. The sixth is the one that fails a supplier audit, because it is invisible until two batches sit side by side.

The grades that brighten — and the ones that do not

Our media is graded on a six-point scale, and the two tables differ: the wet grinding table runs VR / R / N / NF / F / FF, and the dry grinding table runs VR / R / M / MF / F / FF. The wet table has no M or MF; the dry table has no N or NF. A grade letter copied across the two tables means nothing.

For a polishing cycle, the working end of the scale is the lower half:

Grade	Meaning	Role in a polishing sequence
NF	Normal Fine — intermediate quality	The bridging stage after deburring, before the brightening pass (wet)
MF	Medium Fine — pre-polish	Same role on the dry side
F	Fine	The refinement stage; where the surface starts to read as bright
FF	Fine Finish	The final brightening stage — the one that produces the appearance

Three practical rules fall out of this, and each one is where a cycle goes wrong:

Do not skip NF/MF. Jumping from a deburring grade straight to F leaves scratches that are too deep for F to erase in a reasonable time, and the batch comes out with mixed brightness.
Do not run FF to make up for a coarse stage. FF is a brightening grade, not a stock-removal grade. Running it longer does not remove deeper scratches; it just polishes over them.
Match the grade to the media body, not only to the letter. The letter describes the grade; the body — ceramic, plastic, porcelain, steel — decides how it behaves. See how media choice affects the result for the failure pattern that follows a body mismatch.

Steel media: the brightening route, and its conditions

The brightest results on steel and stainless come from steel media used as a burnishing charge rather than an abrasive one. Instead of cutting the surface, a steel charge peens it: the media rolls over the surface and closes it, which produces brightness by deformation rather than by removal. That is why it can reach a mirror-like appearance where an abrasive charge would only reach a fine matte.

It also has three conditions that are not negotiable:

The surface has to be right before the steel charge runs. Burnishing closes a surface; it does not erase scratches. A part that goes into the burnishing charge with scratches comes out with bright scratches.
The charge is a system, not a bag of media. The brightness comes from the combination of steel media, the compound and the water chemistry, and it is sensitive to all three.
It is a steel-and-stainless route. It is not a general brightening answer for soft alloys or for plastics.

Steel media comes in a burnishing grade and a 304 stainless magnetic grade, and the difference matters for how the charge behaves in a magnetic machine versus a flow machine — see the steel media burnishing guide for the full treatment, and the burnishing steel media and 304 SUS magnetic media ranges for what we actually stock.

For a mechanical mirror on stainless by abrasive stages rather than burnishing, the route is different again → achieving a mirror finish on stainless steel.

Wet or dry — this decides the whole process

The single biggest fork in a polishing specification is whether the process runs wet or dry, and it is set by the material rather than by preference:

Wet keeps the part cool, carries swarf away and leaves a bright surface. It is the normal answer for steel and stainless, and for anything that will be plated or passivated afterwards. It adds a drying step and a water-change schedule, both of which are real costs.
Dry suits aluminium and brass, where a wet process can leave a film or a stain, and it suits workshops where a wet process is not permitted. It is slower and produces dust, which needs extraction.

The classic case where this decides everything is acetate: a wet process holds the part warm for a long time and acetate distorts permanently, so most frame work is done dry. The comparison in depth is in dry versus wet polishing.

Time, media life and the compound

Cycle time for a bright polish runs 2–8 hours. The physical work is being done in very small increments, which is why the cycle is an order of magnitude longer than a deburring cycle.
Media life is 20–200 operating hours, and the signal is the same one that applies to any charge: the finish stops improving, the part shows a matte grey haze, and the cycle time creeps up by around 20% for the same result.
The compound is not a lubricant. It carries the heat and the swarf away and decides whether the surface is cut, burnished or polished. Dosing by eye rather than to a schedule is the most common route to a batch that "just would not come up". The practical control method is in vibratory finishing water and compound control.
Noise is 75–85 dB(A) at one metre on a vibratory machine, and the supply is three-phase 380 V or 415 V / 50 Hz, with 220 V available on smaller units. Settle both before the order.

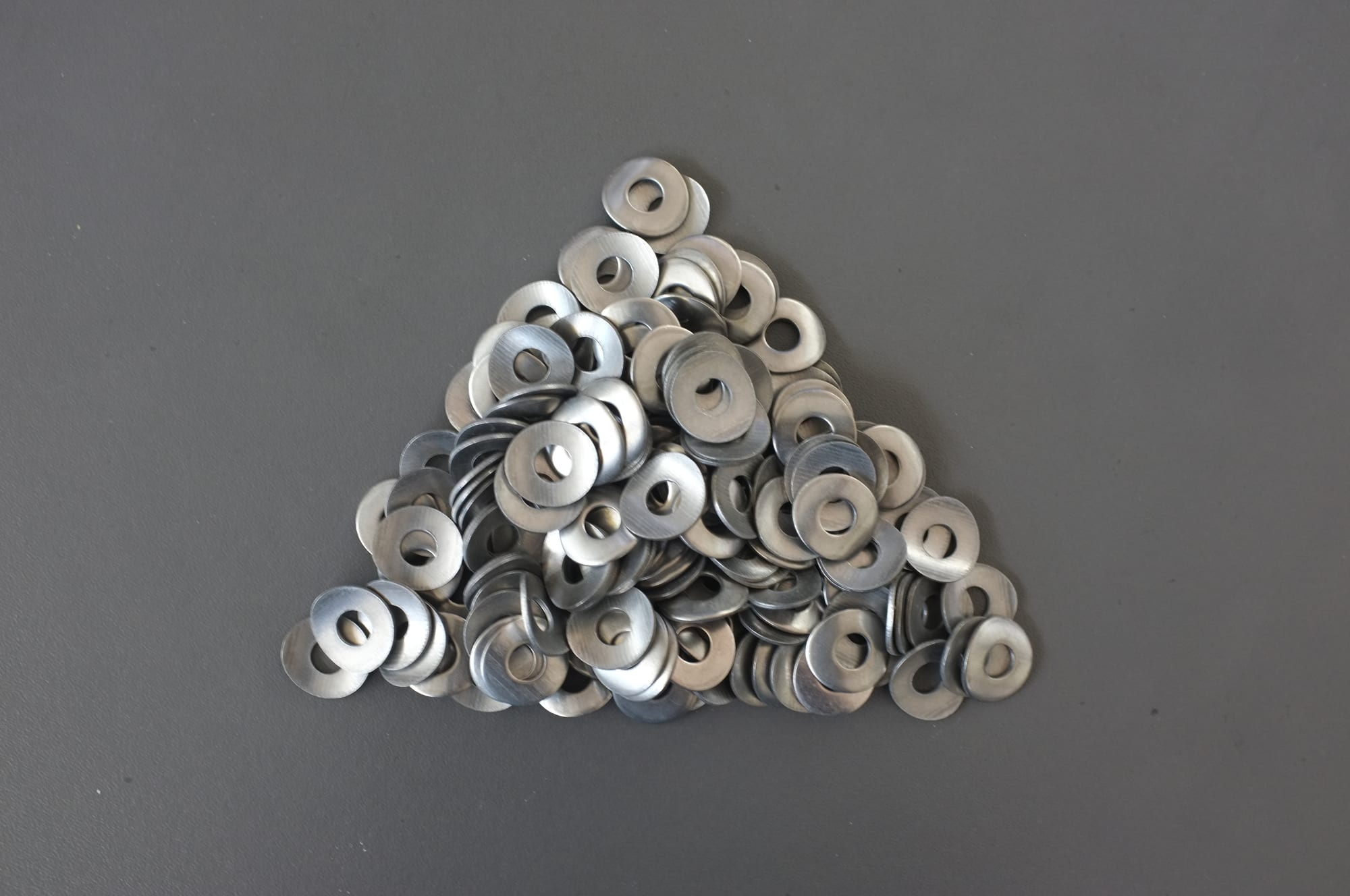

Stainless steel washers before finishing, with sharp edges and machining marks — The incoming condition for a polishing job. Brightness is what the buyer is paying for, but the incoming state is what sets the route: the **machining marking on the face** is what the coarser stage has to remove before any brightening stage can do anything. Polishing over it is how a batch ends up bright and grey at the same time.

The same washers after finishing, with rounded edges and an even bright surface — The same batch after a correct two-stage route. Read two things: the **brightness is even across the parts**, which is what a well-run charge gives, and the **edges are uniformly rounded**, which is the expected result of mass finishing rather than a defect. If a buyer's part cannot accept edge rounding, this is the picture that tells them a different process is needed.

Where a tumbler polisher will not deliver

A scratch you can feel with a fingernail. Polishing removes material rather than filling it, so a groove can be levelled but not removed, and a levelled groove reads hazier than the surrounding surface. This is the line between refinishing and replacing.
A part where the base colour matters for plating. Polishing changes surface colour slightly. If two batches have to plate to the same appearance, the finishing step has to be held to a consistent base rather than to "as bright as possible" — which is a tighter and more useful specification.
Thin walls, below roughly 0.5 mm. Polishing cycles are long and a high-energy family will distort the part over that time.
Deep blind features. Compound does not exchange there, so those faces come out hazier than the exposed ones no matter how long the cycle runs.
Plastics and acetate on a wet route. Acetate distorts permanently in a warm bath, and the acceptance criterion for a plastic frame is clarity and absence of haze rather than mirror brightness — a different target, not a lower one.
Surfaces that must not change dimension. Every polishing stage removes material; on a tolerance-critical face that removal has to be budgeted like any other machining allowance.
Mixed-material loads. A charge used on steel and then on aluminium carries contamination that shows as scratches, and on a brightening cycle that reads as a defect rather than a finish variation.

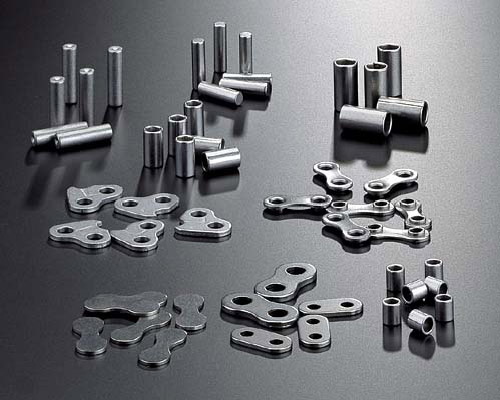

Stainless chain pins, rollers and link plates finished to a uniform bright surface — Small stainless chain components after brightening. The tell for a tumbler polisher is here: **every face is bright and none is brighter than another**, including the inside of the rollers and the link-plate holes. A brightening route that only reached the outside would leave this batch mottled — and it is part geometry, not cycle time, that decides whether the charge reaches those interior faces.

What to write into the RFQ

A polishing quotation is only comparable if it answers these:

A trial on your worst-case part — the one with the awkward feature, not the easy one — with the material, the incoming condition, and both the finish you need and the finish you will accept. The result comes back with cycle time and media consumption measured.
An acceptance criterion that can be measured. Brightness across a batch is the property you are buying; a visual sample agreed in writing, or a burr/roughness measurement, will hold up where "make it shiny" will not.
Which stages, in which order, with which grades. A quotation that names one media grade for a polish is either a one-stage matte or an unfinished specification.
Whether the route is wet or dry, and what that adds. Drying, water change and extraction are part of the cost of the route, not optional extras.
Media and compound consumption per batch. With media life at 20–200 operating hours and compound dosed every cycle, this is the number that sets your cost per part — not the machine price.
Dates in writing. A standard machine ships in 25–35 days from the deposit; built-to-order takes 45–60 days, and a separator or dryer extends it. Sea freight from Xiamen to Rotterdam or Los Angeles adds 30–40 days. Terms are 30% deposit, balance against the shipping documents, the machine in a wooden case bolted to a pallet, and every machine runs with a charge of media before it ships.

On quality: the range is type-examined against Machinery Directive 2006/42/EC by UDEM International Certification Centre against EN ISO 12100 and EN 60204-1, under CE certificates M.2023.206.C88121 (vertical — the vibratory and barrel machines) and M.2023.206.C88120 (horizontal), both valid to 2028-07-24; the quality system is certified to ISO 9001:2015 under certificate 00726Q01571R001, valid 2026-06-03 to 2029-06-02. The company holds 24 granted Chinese intellectual property rights (1 invention patent, 17 utility models, 6 design patents), with twenty-one machine platforms covered by the two type-examination certificates (8 vertical, 13 horizontal, no overlap). Equipment has been built in Xiamen since 1992.

The machine side of the choice — bowl, tub or centrifugal barrel — is on the vibratory finishing machine range and tub vibrators; the full model list with speed and weight is on the catalogue page. The extra-finish ceramic media that the FF stage runs on is in the ceramic polishing media range.

FAQ

What is a tumbler polisher? A mass-finishing machine run with fine media and a polishing compound so that the surface is refined rather than cut down. Any of the machine families can run a polishing cycle; what makes it a polisher is the media grade, the compound and the cycle length, not a separate class of machine.

How long does polishing take?
2–8 hours for a high-brightness finish, against 10–20 minutes for a light deburr. The length is not waste: the removal per hour is deliberately small, and shortening it produces haze rather than brightness.

Why is my batch unevenly bright? Usually one of three: coarse grit carried forward from an earlier stage, compound exhausted mid-cycle, or a spent charge. Uneven brightness between the outer faces and the recesses is a different problem — the compound is not exchanging in the feature, and a longer cycle will not fix it.

Do I need steel media or ceramic media? Steel media burnishes by peening the surface closed and gives the highest brightness on steel and stainless, but the surface has to be correct before it runs. Ceramic media polishes by fine cutting and is more forgiving of an imperfect incoming surface. Which one applies depends on the material and on what the part looked like when it arrived.

Can polishing fix a scratch or a water spot? A water spot usually yes — it is a residue problem, so fix the drying and it goes. A scratch you can feel with a fingernail, no: polishing levels it rather than removing it, and the levelled area reads hazier than the surrounding surface.

How do I know the charge is spent rather than the compound being wrong? Two signals point at the charge: the finish stops improving, and the cycle time has crept up by around 20% for the same result. A compound problem usually shows as a white or cloudy residue rather than a loss of brightness. Swapping compound to fix a spent charge is the expensive way to learn the difference.
