Discover Jintaijin's Innovative Patented Metal Frame Dry Grinding Machine for Superior Polishing Performance May 06, 2023

Introducing Jintaijin's Patented Metal Frame Dry Grinding Machine: High-Quality Polishing with Advanced Technology

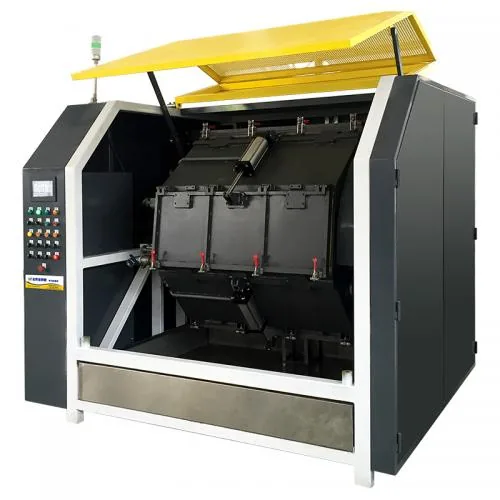

At Jintaijin, we are proud to introduce our state-of-the-art, patented Metal Frame Dry Grinding Machine (Model: OBD-BG01), designed to deliver superior polishing and grinding results across various industries. Our innovative machine incorporates advanced features and technical specifications that make it an essential addition to your production process.

Machine Specifications:

Model: OBD-BG01
Capacity: 40*4
Carrying capacity: 80
Dimensions (LWH): 168018002200 mm
Motor: 3.7 KW
Net Weight: 1600 KG
Bamboo thickness: 25 mm
Speed: 0-100
Key Features:

Capacity: The machine can hold up to 8 hangers, allowing it to accommodate 480 metal eyeglass frames at once. Our verified stainless steel hangers prevent frame deformation while minimizing polishing blind spots.

Efficiency: Each hanger rotates independently while following the rotation of the barrel, significantly enhancing the polishing efficiency.

Intelligent PLC Control System: Our machine features a smart PLC control system for hanger positioning, which optimizes hanger numbering and positioning for increased efficiency and reduced costs.

Bamboo Fiber Barrel: Compared to traditional wooden barrels, our bamboo fiber barrel has a higher density, resulting in reduced polishing oil consumption.

Usage Instructions:

Coarse grinding: Use coarse walnut granules and add coarse grinding polishing oil.
Fine grinding: Use fine walnut granules and add fine grinding polishing oil.
Electroplating: Some products may require this optional third step.
*Note that the grinding media, polishing oil additives, and grinding time may vary depending on the specific product requirements.

Application Fields:

Our Metal Frame Dry Grinding Machine is suitable for various industries, including medical supplies, hardware accessories, metal tools, electronic products, and metal eyeglass frames. It is designed to provide precise grinding and polishing for metal eyeglass frames, accommodating up to 480 frames at a time. The hangers are compatible with frame and water grinding polishing machines, and each hanger can rotate independently. The barrel is made of bamboo, which has a higher density than traditional wooden barrels, reducing polishing oil consumption.

Our machine is perfect for polishing and grinding applications in a wide array of industries, such as bathroom products, medical accessories, electronic accessories, automotive parts, castings, umbrella accessories, machined parts, zinc alloy die-castings, chains, bicycle accessories, motorcycle accessories, valve casings, saddlery, jewelry, stampings, carbon fiber, pins, eyeglass components, safety helmets, bone screws, prosthetic bone pins, bone plates, pliers, gas valves, buckles, clamps, bearings, angle valve casings, baffles, aluminum alloy parts, spring clamps, metal accessories, belt buckles, hardware workpieces, gears, door handles, ball joint boxes, springs, rivets, light bulb sockets, ceramic parts, shoe buckles, machined aluminum parts, zippers, tent clips, hooks, shovels, blades, daily hardware, hardware tools, agricultural tools, woodworking tools, pipe racks, steel bars, tungsten processed parts, machined hardware parts, separators, medical tweezers, stainless steel tweezers, plastic tweezers, and 3D printing polishing, among others.

Experience the Jintaijin Difference:

At Jintaijin, we are committed to providing cutting-edge solutions for your polishing needs. Our patented Metal Frame Dry Grinding Machine is a testament to our dedication to innovation and excellence. To demonstrate our confidence in our product, we offer free sample polishing services to interested clients.

Contact us today to learn more about how our Metal Frame Dry Grinding Machine can revolutionize your production process and help you achieve unparalleled polishing results.

Frame condition	Consideration	Starting direction
Thin metal frame section	Load deforms thin sections	Lighter media and lower load
Frame surface that must stay uniform	Frames are large and flat	Keep the load consistent across the cycle
Hinge and joint areas	Trapped media or compound affects function	Check joints after processing
Edge and rim condition	Edges are worked first	Check the rim on a sample
Dry process dust	Generated from media and part	Extraction as part of the process
Surface after finishing	Dry media leaves a specific surface	Confirm the sheen matches the target

Directions to test on a representative sample, not validated results for a specific component.
