Process-selection guide. Images and catalog pages are references; confirm the actual part, specification and acceptance limits before choosing a route.

GUIDE-1010 · Equipment, media and sample-trial assessment

Finishing Automation Components: Equipment and Media Selection

For robot-joint housings, brackets and other automation components, the first choice is often whether the inquiry concerns loose-part finishing, media supply, or an integrated handling line. These scopes require different inputs and evidence.

Decide what this part needs

Specify material, machining condition, contact limits and throughput before comparing vibratory, barrel, disc, dry or magnetic directions.

Screen the route before asking for a quotation

Identify the material, machining marks, burr locations and permitted part-to-part contact.
Protect bearing seats, locating datums, threaded holes and any sensor or sealing interfaces.
State the part-family range and target throughput before discussing automated loading or separation.

Build a useful sample trial

Mark bearing seats, threads, locating datums and visible faces. Test a representative range of part sizes and record edge, residue and appearance outcomes separately.

Trial more than one nominal part when the family has size or geometry variation. Record edge, residue, appearance and handling behavior separately. The available component image is a sample reference, not proof of a robot-line integration result.

Know what the reference does not prove

A general supplier listing does not establish fit for a robot component or an automated line; integration interfaces and first-article evidence need separate review.

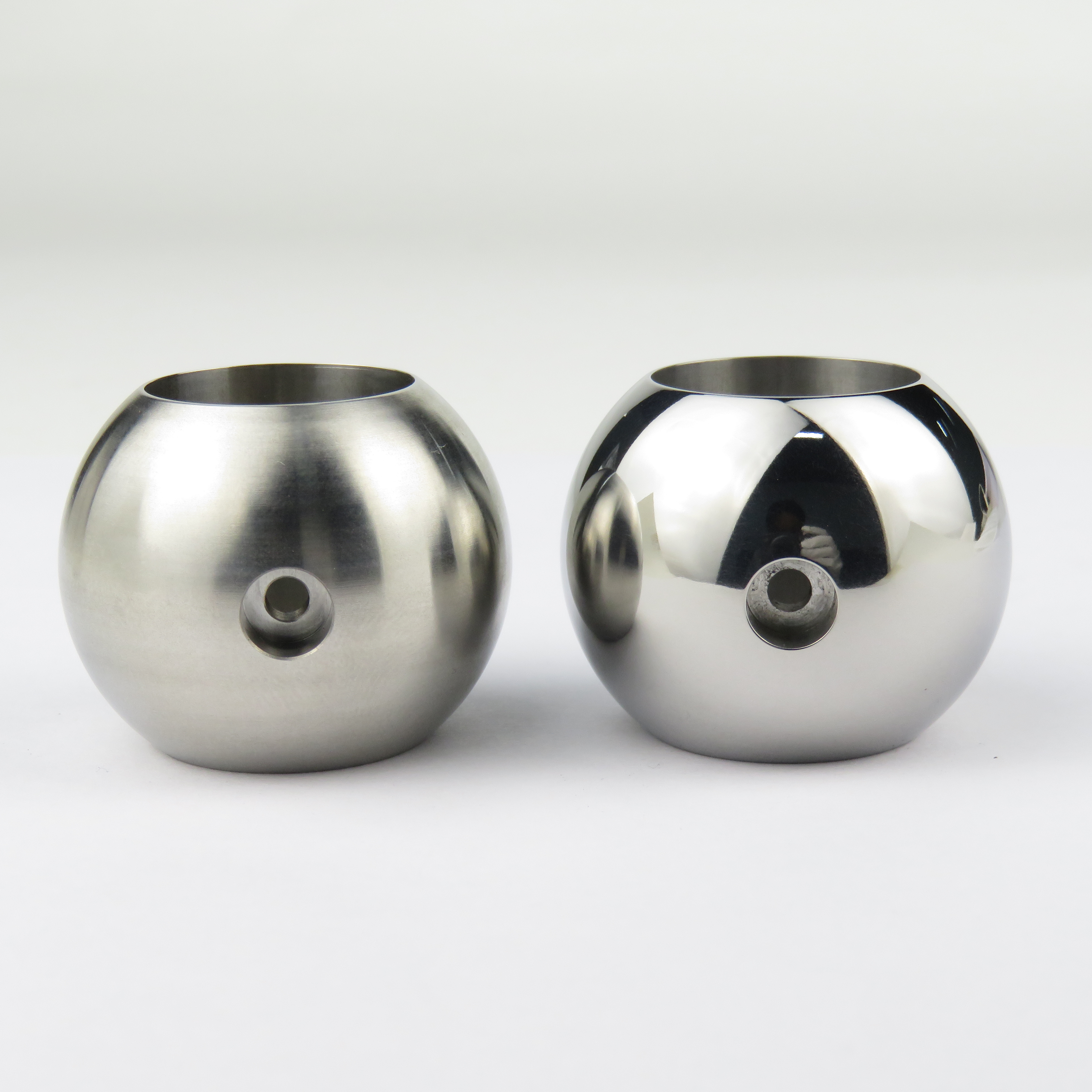

Archive photograph of metal robot-joint components before and after finishing. — Archive robot-joint visual comparison; process parameters, dimensional results and repeatability were not supplied.

SurfacePolish catalog page 7, labelled reference for robotics and automation — Catalog page 07 · reference only
adjacent electronic/mechanical-component examples; no robotic automation-part result. Printed performance or compliance claims have not been verified for this application.

Ask the next practical question

Is the immediate requirement a machine/media proposal, a sample trial, or an integrated handling and finishing line?

Ask for the next decision first: a media shortlist, representative sample trial, machine proposal, or integration feasibility review. The quotation should name its scope.

Related SurfacePolish resources

Scope and proof boundary

A robot-joint photograph supports a visual discussion only. Ask for the actual component and acceptance criteria before inferring the process route, cycle time, dimensional result or repeatability.

Request an equipment and media selection review

Send the part material, dimensions, starting condition, target result, quantity and photographs or a drawing. Identify protected features and an acceptance method. This link carries source reference GUIDE-1010; include it in your message if you also want a manual reference.

Open the SurfacePolish enquiry form Email this guide reference

SurfacePolish will confirm whether its equipment, media or sample-review route fits the supplied part. No fixed price or result is promised.
